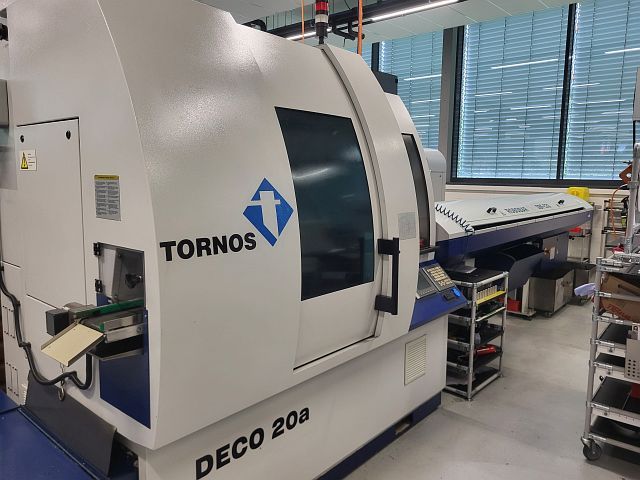

TORNOS DECO 20A
Categories
CNC Swiss Type Turning Machine
Object
57377
Brand
TORNOS
Model
DECO 20A
YoM
2011
Controls
FANUC
Object
57377
| basic functions | ||
|---|---|---|
| number of spindles: | 2 | |
| - counter spindle: yes | ||
| live positions: yes | ||
| number of c-axes: | 2 | |
| Working Range Turning | ||
|---|---|---|
| turning diameter (max): | 20 | mm |
| bar diameter (max): | 20 | mm |
| main spindle | ||
|---|---|---|
| spindle revolutions (max): | 10000 | /min |
| counter spindle | ||
|---|---|---|
| spindle revolutions (max): | 10000 | /min |
| Electrical specifications | ||
|---|---|---|
| mains power supply: | 14 | kVA |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 2270 | mm |
| space requirements -front/back-: | 1550 | mm |
| total height: | 2220 | mm |
| total weight approx.: | 3500 | kg |
| Features: - Includes bar feeder - Includes oil mist extraction - Complete accessories (upon request) Axes: - S1/S2/S3/S4/S5 - Z1/Z3/Z4 - Y1/Y2/Y3/Y4 - X1/X2/X3/X4 Machine condition: very good |
| Features: - Includes bar feeder - Includes oil mist extraction - Complete accessories (upon request) Axes: - S1/S2/S3/S4/S5 - Z1/Z3/Z4 - Y1/Y2/Y3/Y4 - X1/X2/X3/X4 Machine condition: very good |
