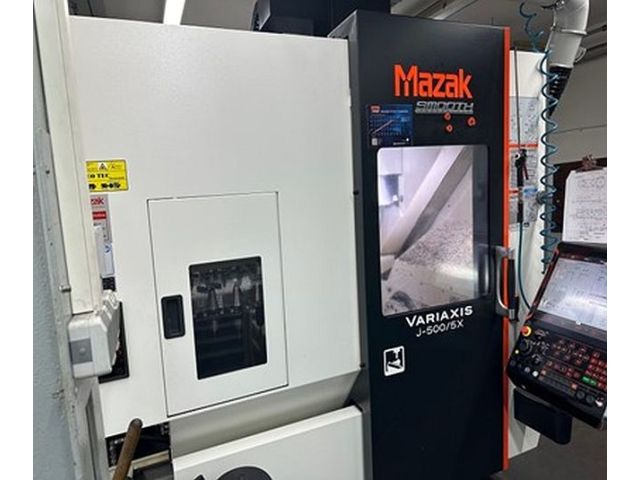

MAZAK VARIAXIS J-500
Categories
Machining Center - Vert.
Object
51699
Brand
MAZAK
Model
VARIAXIS J-500
YoM
2017
Controls
MAZAK
Object
51699
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 5 | |
| X-axis travel: | 350 | mm |
| Y-axis travel: | 550 | mm |
| Z-axis travel: | 510 | mm |
| rotating range A-axis from: | -120 | ° |
| rotating range A-axis up to: | 30 | ° |
| rotating range C-axis up to: | 360 | ° |
| Table | ||
|---|---|---|
| table surface (left-right): | 500 | mm |
| table surface (front-back): | 400 | mm |
| workpiece load (max): | 200 | kg |
| spindle / head | ||
|---|---|---|
| spindle revolutions (max): | 12000 | /min |
| tool fixture: ISO SK 40 | ||
| Tool magazine | ||
|---|---|---|
| number of positions: | 30 | |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| attachments | ||
|---|---|---|
| through spindle coolant attachment: yes | ||
| closed cabin: yes | ||
| European CE standards: yes | ||
