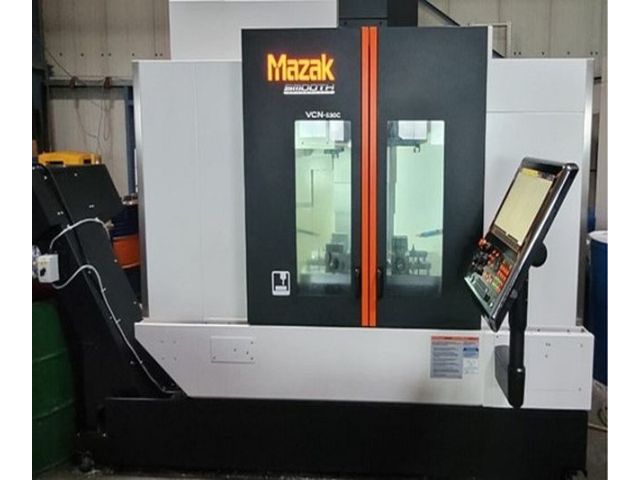

MAZAK VCN-530C
Categories
Machining Center - Vert.
Object
51700
Brand
MAZAK
Model
VCN-530C
YoM
2019
Controls
MAZAK SMOOTH G
Object
51700
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 5 | |
| X-axis travel: | 1050 | mm |
| Y-axis travel: | 530 | mm |
| Z-axis travel: | 510 | mm |
| distance spindle nose - table surface (max.): | 660 | mm |
| Table | ||
|---|---|---|
| table surface (left-right): | 1300 | mm |
| table surface (front-back): | 550 | mm |
| workpiece load (max): | 1200 | kg |
| spindle / head | ||
|---|---|---|
| spindle revolutions (max): | 12000 | /min |
| tool fixture: ISO SK 40 | ||
| Tool magazine | ||
|---|---|---|
| magazin type: disc magazine | ||
| number of positions: | 30 | |
| tool diameter max.: | 80 | mm |
| - with free neighbour positions: | 125 | mm |
| tool length max.: | 350 | mm |
| tool weight max.: | 8 | kg |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| attachments | ||
|---|---|---|
| chip conveyor: yes | ||
| coolant unit: yes | ||
| through spindle coolant attachment: yes | ||
| closed cabin: yes | ||
| European CE standards: yes | ||
