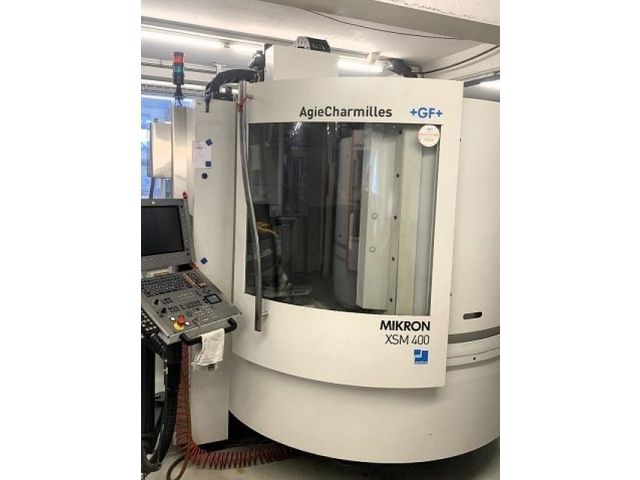

MIKRON XSM 400
Categories
Machining Center - Univ. (APC)
Object
52029
Brand
MIKRON
Model
XSM 400
YoM
2007
Controls
HEIDENHAIN I TNC 530
Object
52029
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 5 | |
| .. among of them simultaneous CNC axes: | 5 | |
| X-axis travel: | 400 | mm |
| Y-axis travel: | 450 | mm |
| Z-axis travel: | 350 | mm |
| rotating range C-axis from: | 0 | ° |
| rotating range C-axis up to: | 360 | ° |
| spindle / head | ||
|---|---|---|
| spindle revolutions (max): | 42000 | /min |
| tool fixture: HSK E40 | ||
| Tool magazine | ||
|---|---|---|
| number of positions: | 68 | |
| automatic workload equipment | ||
|---|---|---|
| workpiece manipulator: change gripper | ||
| store type: circulation magazine | ||
| number of store positions: | 7 | |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 4000 | mm |
| space requirements -front/back-: | 4000 | mm |
| total weight approx.: | 6500 | kg |
| Pallet changer: 7-station Erowa UPC 320mm x 320mm - Laser tool measurement - Thermo Control - Chip conveyor - Belt filter - Fume extraction |
| Pallet changer: 7-station Erowa UPC 320mm x 320mm - Laser tool measurement - Thermo Control - Chip conveyor - Belt filter - Fume extraction |
