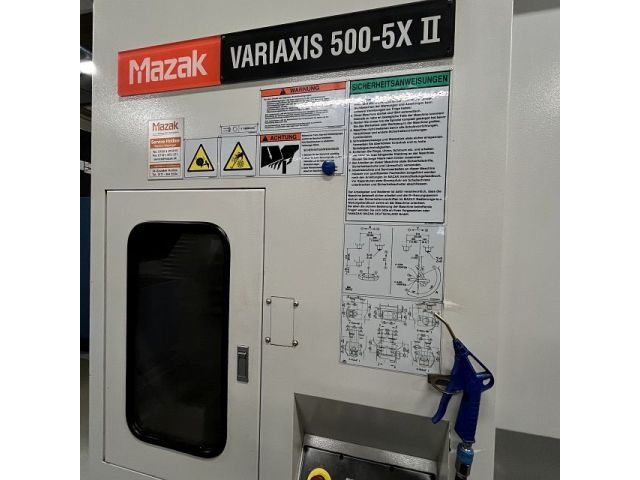

MAZAK VARIAXIS 500-5X II
Categories
Machining Center - Univ.
Object
52214
Brand
MAZAK
Model
VARIAXIS 500-5X II
YoM
2011
Controls
MAZAK MAZATROL MATRIX
Object
52214
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 5 | |
| .. among of them simultaneous CNC axes: | 5 | |
| X-axis travel: | 510 | mm |
| Y-axis travel: | 510 | mm |
| Z-axis travel: | 460 | mm |
| rotating range A-axis from: | 30 | ° |
| rotating range A-axis up to: | -120 | ° |
| rotating range C-axis from: | 0 | ° |
| rotating range C-axis up to: | 360 | ° |
| Table | ||
|---|---|---|
| clamping surface diameter: | 500 | mm |
| workpiece load (max): | 300 | kg |
| spindle / head | ||
|---|---|---|
| spindle revolutions (max): | 18000 | /min |
| Axis drives | ||
|---|---|---|
| rapid traverse: | 52000 | mm/min |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 3500 | mm |
| space requirements -front/back-: | 2800 | mm |
| total weight approx.: | 7500 | kg |
| Machine in very good condition Equipment: - Incl. extraction system - Internal cooling system up to 60 bar |
