YCM NXV-560A
Categories
Machining Center - Vert.
Object
52658
Brand
YCM
Model
NXV-560A
YoM
2018
Controls
FANUC MXP-200FA
Object
52658
| Working Range -cubic- | ||
|---|---|---|
| X-axis travel: | 560 | mm |
| Y-axis travel: | 410 | mm |
| Z-axis travel: | 450 | mm |
| Table | ||
|---|---|---|
| table surface (left-right): | 700 | mm |
| table surface (front-back): | 420 | mm |
| workpiece load (max): | 300 | kg |
| spindle / head | ||
|---|---|---|
| spindle revolutions (max): | 12000 | /min |
| Axis drives | ||
|---|---|---|
| rapid traverse X: | 48 | mm/min |
| rapid traverse Y: | 48 | mm/min |
| rapid traverse Z: | 48 | mm/min |
| Electrical specifications | ||
|---|---|---|
| mains power supply: | 30 | kVA |
| Dimensions / weights | ||
|---|---|---|
| total height: | 3000 | mm |
| total weight approx.: | 3000 | kg |
| attachments | ||
|---|---|---|
| chip conveyor: yes | ||
| coolant unit: yes | ||
| through spindle coolant attachment: yes | ||

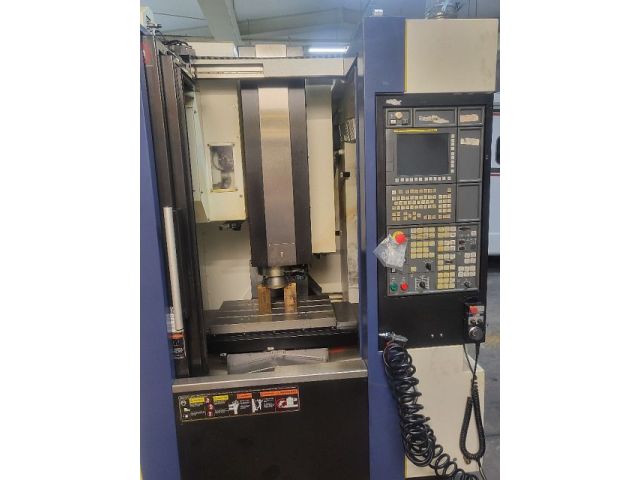

| Vertical machine YCM NXV-560A with Fanuc MXP-200AF control, used for producing samples and prototypes. Includes: Transformer, central lubrication, workstation lighting, safety switch on the door, RS 232 interface, manual encoder for axis movement in manual program, light and sound signaling, internal and external chip conveyors, work area cleaning, lubricating oil collector, fast tapping without balancing head (rigid tapping), manual air valve for cleaning, increased coolant pressure to 5 bar, cooling nozzles on the spindle flange, chip conveyor, additionally with cooling by spindle 20 bar and main spindle cooling. Well-preserved and ready for use. |
