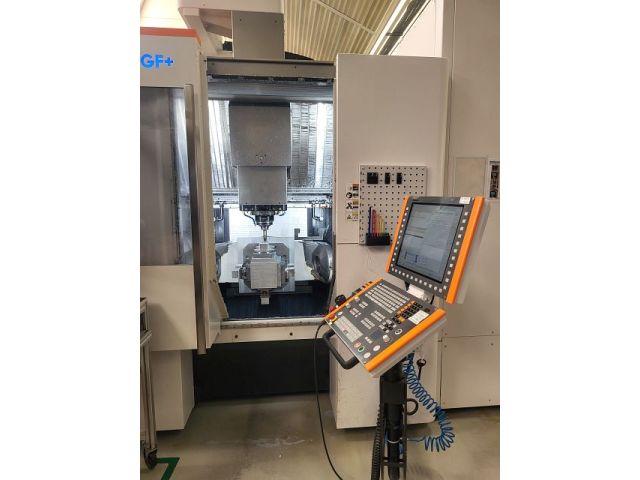

MIKRON MILL P 800U
Categories
Machining Center - Univ. (APC)
Object
52805
Brand
MIKRON
Model
MILL P 800U
Controls
HEIDENHAIN TNC 640
Object
52805
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 5 | |
| .. among of them simultaneous CNC axes: | 5 | |
| X-axis travel: | 800 | mm |
| Y-axis travel: | 800 | mm |
| Z-axis travel: | 550 | mm |
| rotating range A-axis from: | 91 | ° |
| rotating range A-axis up to: | -121 | ° |
| rotating range C-axis from: | 0 | ° |
| rotating range C-axis up to: | 360 | ° |
| spindle / head | ||
|---|---|---|
| spindle revolutions (max): | 20000 | /min |
| tool fixture: HSK A63 | ||
| Axis drives | ||
|---|---|---|
| rapid traverse X: | 45000 | mm/min |
| rapid traverse Y: | 45000 | mm/min |
| rapid traverse Z: | 45000 | mm/min |
| Tool magazine | ||
|---|---|---|
| magazin type: rack | ||
| number of positions: | 170 | |
| automatic workload equipment | ||
|---|---|---|
| number of store positions: | 2 | |
| number of pallets: | 2 | |
| Electrical specifications | ||
|---|---|---|
| mains power supply: | 55 | kVA |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 4500 | mm |
| space requirements -front/back-: | 4500 | mm |
| total height: | 3400 | mm |
| total weight approx.: | 17000 | kg |
| attachments | ||
|---|---|---|
| chip conveyor: yes | ||
| coolant unit: yes | ||
| band filtration unit: yes | ||
| through spindle coolant attachment: yes | ||
| closed cabin: yes | ||
| European CE standards: yes | ||
| Machines in very good condition Equipment: - Rotary swivel table for pallets - Delphin pallet holder - Internal cooling 18-80 bar - 950-liter belt filter - Mist extraction - Laser workpiece measurement - Infrared measuring probe (3D probe) - MSP spindle protection - 2 clamping plates Machine for sale: - Without workpiece storage |
