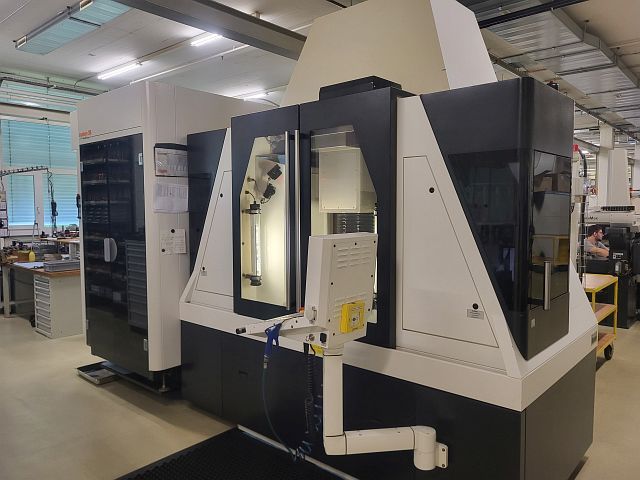

KERN PY NANO
Categories
Machining Center - Univ. (APC)
Object
53239
Brand
KERN
Model
PY NANO
YoM
2015
Controls
HEIDENHAIN I TNC 530
Object
53239
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 5 | |
| .. among of them simultaneous CNC axes: | 5 | |
| X-axis travel: | 500 | mm |
| Y-axis travel: | 500 | mm |
| Z-axis travel: | 400 | mm |
| rotating range A-axis from: | -10 | ° |
| rotating range A-axis up to: | 110 | ° |
| rotating range C-axis from: | 0 | ° |
| rotating range C-axis up to: | 360 | ° |
| spindle / head | ||
|---|---|---|
| spindle revolutions (max): | 42000 | /min |
| tool fixture: HSK E40 | ||
| Axis drives | ||
|---|---|---|
| rapid traverse: | 30000 | mm/min |
| Tool magazine | ||
|---|---|---|
| magazin type: disc magazine | ||
| number of positions: | 75 | |
| automatic workload equipment | ||
|---|---|---|
| number of store positions: | 120 | |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 2900 | mm |
| space requirements -front/back-: | 2450 | mm |
| total height: | 2820 | mm |
| total weight approx.: | 8000 | kg |
| attachments | ||
|---|---|---|
| tool breakage detector: yes | ||
| zero-point workholding system: yes | ||
| central lubrication system: yes | ||
| coolant unit: yes | ||
| closed cabin: yes | ||
| European CE standards: yes | ||
| Machine condition: TOP - Spindle replaced in March 2025 (approx. 1000 hours) Machine features: - Hydrostatic guideways - Oil coolant - Workpiece changer System 3R (Workpartner 1+) * 100 positions for ITS 50 * 20 positions for ITS 148 - PowerChuck P Ø150 table chuck - BLUM laser tool measurement - Renishaw OMP400 infrared probe - Air extraction |
