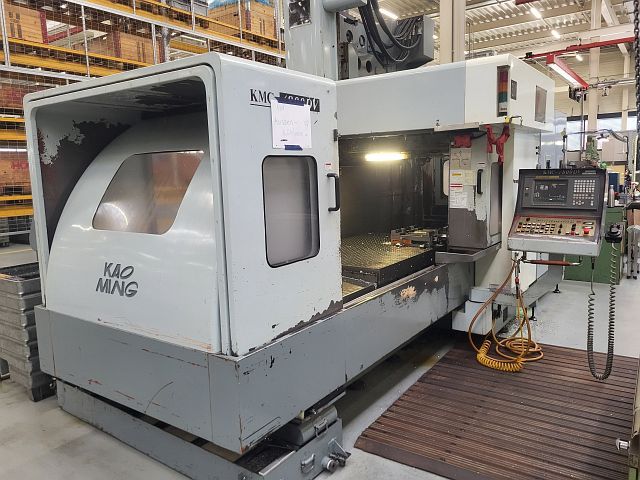

KAO MING KMC-1800 DV
Categories
Planer Type Milling Machine, universal, ATC
Object
55439
Brand
KAO MING
Model
KMC-1800 DV
YoM
2002
Controls
FANUC 18 M
Object
55439
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 3 | |
| .. among of them simultaneous CNC axes: | 3 | |
| X-axis travel: | 1940 | mm |
| Y-axis travel: | 1200 | mm |
| Z-axis travel: | 700 | mm |
| Table | ||
|---|---|---|
| workpiece load (max): | 3500 | kg |
| spindle / head | ||
|---|---|---|
| spindle revolutions (min): | 100 | /min |
| spindle revolutions (max): | 15000 | /min |
| tool fixture: HSK E63 | ||
| spindle torque: | 150 | Nm |
| Tool magazine | ||
|---|---|---|
| number of positions: | 32 | |
| tool weight max.: | 8 | kg |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 5300 | mm |
| total weight approx.: | 14500 | kg |
| attachments | ||
|---|---|---|
| chip conveyor: yes | ||
| coolant unit: yes | ||
| band filtration unit: yes | ||
| closed cabin: yes | ||
