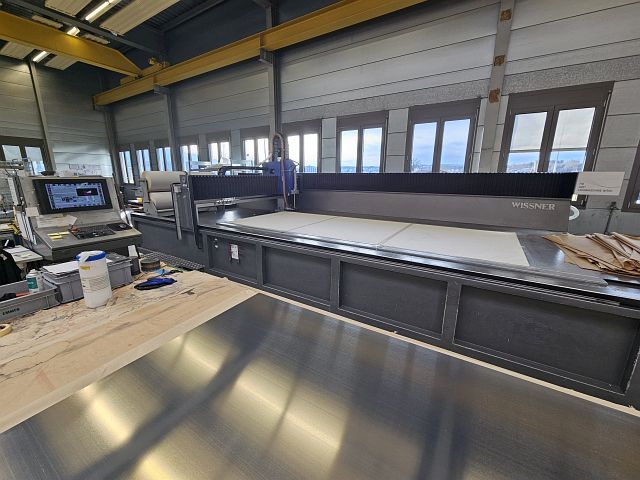

WISSNER WITEC 4015 ECONOMIC
Categories
Machining Center
Object
56525
Brand
WISSNER
Model
WITEC 4015 ECONOMIC
YoM
2006
Controls
ALPHA
Object
56525
| basic design | ||
|---|---|---|
| basic design: bed type | ||
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 3 | |
| .. among of them simultaneous CNC axes: | 3 | |
| X-axis travel: | 4000 | mm |
| Y-axis travel: | 1500 | mm |
| Z-axis travel: | 120 | mm |
| Table | ||
|---|---|---|
| table surface (left-right): | 4000 | mm |
| table surface (front-back): | 1500 | mm |
| spindle / head | ||
|---|---|---|
| spindle revolutions (min): | 5 | /min |
| spindle revolutions (max): | 40000 | /min |
| tool fixture: HSK E25 | ||
| drive power: | 3 | kW |
| drive power: | 3 | kW |
| Tool magazine | ||
|---|---|---|
| number of positions: | 10 | |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| total weight approx.: | 5500 | kg |
| Vacuum clamping technique for aluminum plates up to 6 mm thickness. |
| Vacuum clamping technique for aluminum plates up to 6 mm thickness. |
