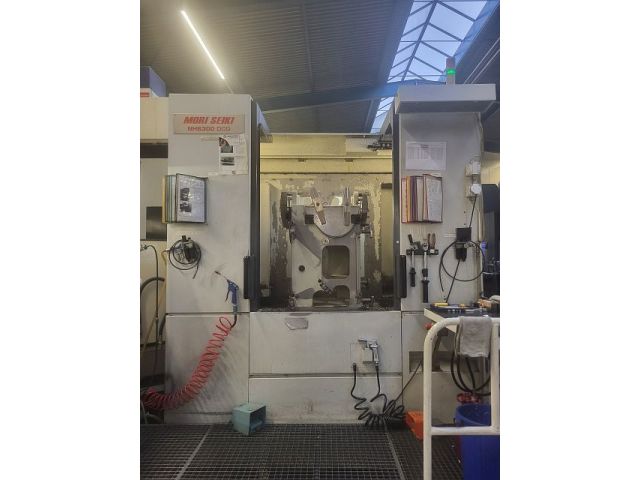

MORI SEIKI NH 6300 DCG
Categories
Machining Center - Horiz. (APC)
Object
56832
Brand
MORI SEIKI
Model
NH 6300 DCG
YoM
2006
Controls
FANUC 18 MB
Object
56832
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 4 | |
| .. among of them simultaneous CNC axes: | 3 | |
| X-axis travel: | 840 | mm |
| Y-axis travel: | 860 | mm |
| Z-axis travel: | 840 | mm |
| rotating range B-axis from: | 0 | ° |
| rotating range B-axis up to: | 360 | ° |
| Table | ||
|---|---|---|
| table surface (left-right): | 630 | mm |
| table surface (front-back): | 800 | mm |
| workpiece load (max): | 1500 | kg |
| spindle / head | ||
|---|---|---|
| spindle type: horizontal | ||
| spindle revolutions (max): | 8000 | /min |
| Tool magazine | ||
|---|---|---|
| number of positions: | 140 | |
| automatic workload equipment | ||
|---|---|---|
| store type: table changer | ||
| number of store positions: | 2 | |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| total weight approx.: | 19000 | kg |
| attachments | ||
|---|---|---|
| chip conveyor: yes | ||
| coolant unit: yes | ||
| band filtration unit: yes | ||
| through spindle coolant attachment: yes | ||
| closed cabin: yes | ||
| European CE standards: yes | ||
