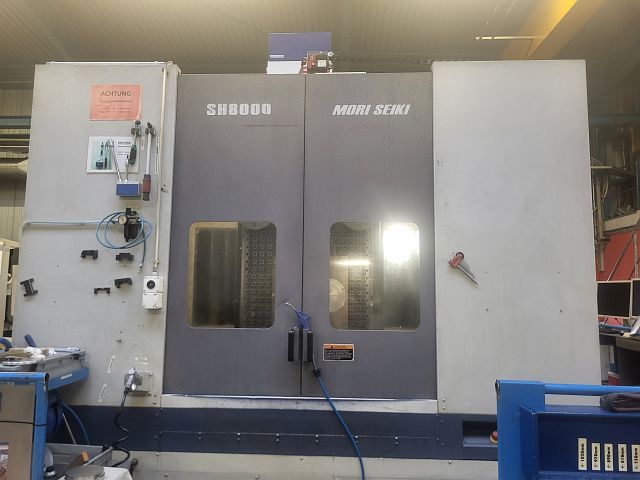

MORI SEIKI SH8000
Categories
Machining Center - Horiz. (APC)
Object
56860
Brand
MORI SEIKI
Model
SH8000
YoM
2001
Controls
MORI SEIKI MSG-501
Object
56860
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 4 | |
| X-axis travel: | 1300 | mm |
| Y-axis travel: | 1200 | mm |
| Z-axis travel: | 1100 | mm |
| Table | ||
|---|---|---|
| table surface (left-right): | 800 | mm |
| table surface (front-back): | 800 | mm |
| workpiece load (max): | 2000 | kg |
| spindle / head | ||
|---|---|---|
| spindle revolutions (max): | 0 | /min |
| spindle revolutions (max): | 6000 | /min |
| tool fixture: ISO BT 50 | ||
| Axis drives | ||
|---|---|---|
| rapid traverse: | 42000 | mm/min |
| Tool magazine | ||
|---|---|---|
| number of positions: | 60 | |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 7400 | mm |
| space requirements -front/back-: | 4300 | mm |
| total height: | 3750 | mm |
| total weight approx.: | 23500 | kg |
| attachments | ||
|---|---|---|
| chip conveyor: yes | ||
| coolant unit: yes | ||
| band filtration unit: yes | ||
| through spindle coolant attachment: yes | ||
| closed cabin: yes | ||
| European CE standards: yes | ||
