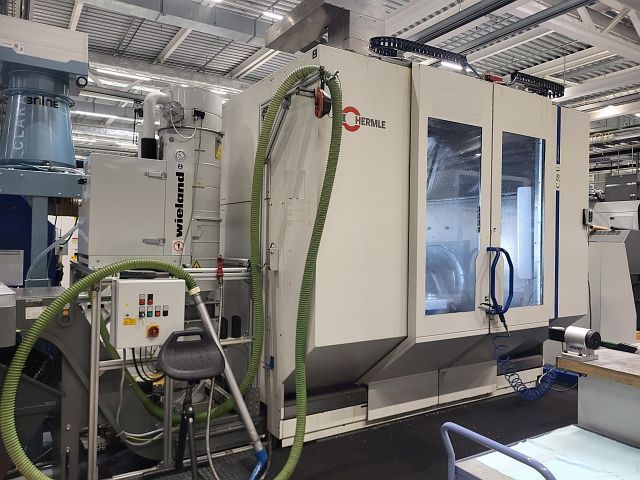

HERMLE C 50 U
Categories
Machining Center - Univ.
Object
57118
Brand
HERMLE
Model
C 50 U
YoM
2007
Controls
HEIDENHAIN ITNC 530
Object
57118
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 5 | |
| .. among of them simultaneous CNC axes: | 5 | |
| X-axis travel: | 1000 | mm |
| Y-axis travel: | 1100 | mm |
| Z-axis travel: | 700 | mm |
| rotating range A-axis from: | 100 | ° |
| rotating range A-axis up to: | -130 | ° |
| rotating range C-axis from: | 0 | ° |
| rotating range C-axis up to: | 360 | ° |
| Table | ||
|---|---|---|
| table surface (left-right): | 1150 | mm |
| table surface (front-back): | 900 | mm |
| workpiece load (max): | 2000 | kg |
| spindle / head | ||
|---|---|---|
| spindle revolutions (min): | 20 | /min |
| spindle revolutions (max): | 18000 | /min |
| tool fixture: HSK A63 | ||
| Axis drives | ||
|---|---|---|
| rapid traverse: | 60000 | mm/min |
| rapid traverse X: | 60000 | mm/min |
| rapid traverse Y: | 60000 | mm/min |
| Tool magazine | ||
|---|---|---|
| number of positions: | 60 | |
| tool diameter max.: | 95 | mm |
| tool length max.: | 430 | mm |
| tool weight max.: | 15 | kg |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| total weight approx.: | 22000 | kg |
| attachments | ||
|---|---|---|
| chip conveyor: yes | ||
| coolant unit: yes | ||
| band filtration unit: yes | ||
| through spindle coolant attachment: yes | ||
| closed cabin: yes | ||
| European CE standards: yes | ||
| Machine in good condition - Spindle hours: 21,000 - Annual maintenance performed by the manufacturer - Mostly used for aluminum |
