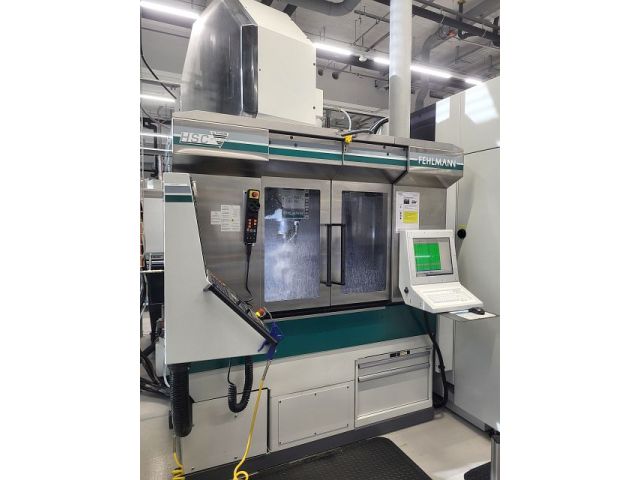

FEHLMANN PICOMAX 60
Categories
Machining Center - Univ.
Object
57147
Brand
FEHLMANN
Model
PICOMAX 60
YoM
2011
Controls
HEIDENHAIN ITNC 530
Object
57147
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 5 | |
| .. among of them simultaneous CNC axes: | 5 | |
| X-axis travel: | 505 | mm |
| Y-axis travel: | 355 | mm |
| Z-axis travel: | 610 | mm |
| rotating range C-axis from: | 0 | ° |
| rotating range C-axis up to: | 360 | ° |
| spindle / head | ||
|---|---|---|
| spindle revolutions (max): | 20000 | /min |
| tool fixture: ISO SK 30 | ||
| Tool magazine | ||
|---|---|---|
| number of positions: | 48 | |
| automatic workload equipment | ||
|---|---|---|
| number of store positions: | 60 | |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| total weight approx.: | 3900 | kg |
| attachments | ||
|---|---|---|
| tool breakage detector: yes | ||
| chip conveyor: yes | ||
| coolant unit: yes | ||
| band filtration unit: yes | ||
| through spindle coolant attachment: yes | ||
| closed cabin: yes | ||
| European CE standards: yes | ||
| Equipment: - ATS 160 CNC (5-axis rotary table) - EROWA Robot compact 80, with GPS 120 clamping system (2016) - BLUM tool measuring system - Numerous GPS 120 base plates - Functional video available upon request (Spindle was replaced in 2024) |
| Equipment: - ATS 160 CNC (5-axis rotary table) - EROWA Robot compact 80, with GPS 120 clamping system (2016) - BLUM tool measuring system - Numerous GPS 120 base plates - Functional video available upon request (Spindle was replaced in 2024) |
