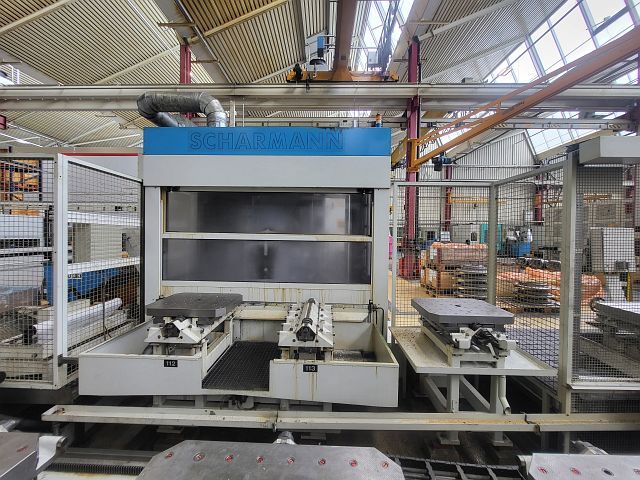

SCHARMANN SOLON 2
Categories
Machining Center - Horiz. (APC)
Object
57462
Brand
SCHARMANN
Model
SOLON 2
YoM
1998
Controls
SIEMENS 840 D
Object
57462
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 4 | |
| X-axis travel: | 1200 | mm |
| Y-axis travel: | 1000 | mm |
| Z-axis travel: | 1000 | mm |
| rotating range B-axis from: | 0 | ° |
| rotating range B-axis up to: | 360 | ° |
| Table | ||
|---|---|---|
| table surface (left-right): | 630 | mm |
| table surface (front-back): | 800 | mm |
| workpiece load (max): | 2000 | kg |
| spindle / head | ||
|---|---|---|
| spindle revolutions (max): | 10000 | /min |
| tool fixture: HSK A100 | ||
| Axis drives | ||
|---|---|---|
| rapid traverse: | 25000 | mm/min |
| rotation speed B-axis: | 11 | /min |
| automatic workload equipment | ||
|---|---|---|
| number of store positions: | 8 | |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 40 | kW |
| mains power supply: | 101 | kVA |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 10000 | mm |
| space requirements -front/back-: | 7000 | mm |
| total height: | 4000 | mm |
| total weight approx.: | 25000 | kg |
