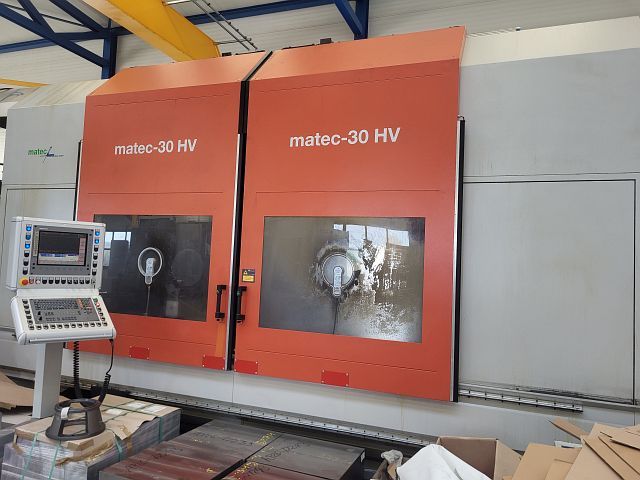

MATEC 30 HV
Categories
Machining Center - Univ.
Object
57593
Brand
MATEC
Model
30 HV
YoM
2011
Controls
HEIDENHAIN ITNC 530
Object
57593
| basic design | ||
|---|---|---|
| basic design: moving column | ||
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 5 | |
| X-axis travel: | 3000 | mm |
| Y-axis travel: | 1000 | mm |
| Z-axis travel: | 1100 | mm |
| Table | ||
|---|---|---|
| table surface (left-right): | 3000 | mm |
| table surface (front-back): | 1035 | mm |
| spindle / head | ||
|---|---|---|
| tool fixture: HSK A63 | ||
| Tool magazine | ||
|---|---|---|
| tool manipulator: change gripper | ||
| Electrical specifications | ||
|---|---|---|
| mains power supply: | 60 | kVA |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 14000 | mm |
| space requirements -front/back-: | 3760 | mm |
| total height: | 3770 | mm |
| total weight approx.: | 24000 | kg |
| attachments | ||
|---|---|---|
| tool breakage detector: yes | ||
| zero-point workholding system: yes | ||
| chip conveyor: yes | ||
| band filtration unit: yes | ||
| closed cabin: yes | ||
| European CE standards: yes | ||
