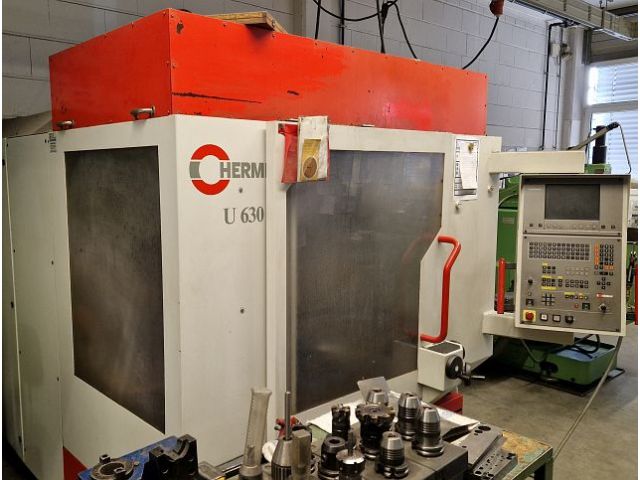

HERMLE U 630 S
Categories
Milling Machine, universal
Object
43483
Brand
HERMLE
Model
U 630 S
YoM
1998
Controls
HEIDENHAIN TNC 415
Object
43483
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 3 | |
| .. among of them simultaneous CNC axes: | 3 | |
| X-axis travel: | 875 | mm |
| Y-axis travel: | 500 | mm |
| Z-axis travel: | 500 | mm |
| Table | ||
|---|---|---|
| table surface (left-right): | 900 | mm |
| table surface (front-back): | 528 | mm |
| workpiece load (max): | 400 | kg |
| spindle / head | ||
|---|---|---|
| spindle revolutions (min): | 20 | /min |
| spindle revolutions (max): | 7000 | /min |
| number of gears: | 2 | |
| tool fixture: ISO SK 40 | ||
| spindle diameter: | 55 | mm |
| drive power S6 40%: | 11 | kW |
| drive power S1 100%: | 7.5 | kW |
| spindle torque S6 40%: | 390 | Nm |
| spindle torque S1 100%: | 266 | Nm |
| sleeve stroke: | 75 | mm |
| Axis drives | ||
|---|---|---|
| feed velocity (min): | 1 | mm/min |
| feed velocity (max): | 15000 | mm/min |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 14 | kW |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 3600 | mm |
| space requirements -front/back-: | 3900 | mm |
| total height: | 2100 | mm |
| total weight approx.: | 6000 | kg |
| attachments | ||
|---|---|---|
| closed cabin: yes | ||
| 4-axis CNC control Mineral casting bed milling head vertically/horizontally tiltable oriented spindle stop servo drives for main spindle and feeds quill retractable protective cabin |
| 4-axis CNC control Mineral casting bed milling head vertically/horizontally tiltable oriented spindle stop servo drives for main spindle and feeds quill retractable protective cabin |
