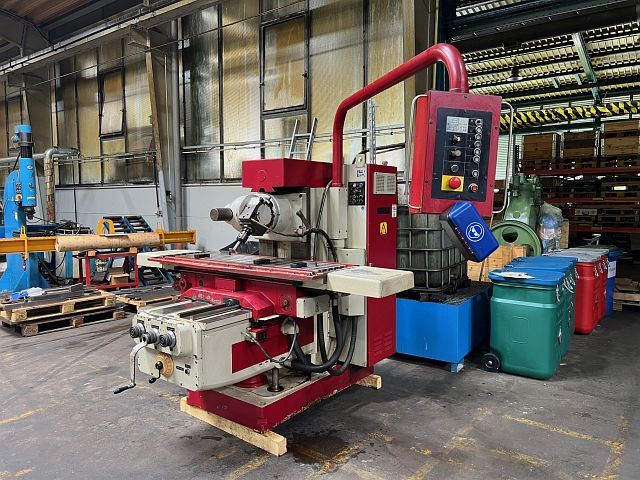

HECKERT FW 400 E
Categories
Milling Machine
Object
52554
Brand
HECKERT
Model
FW 400 E
YoM
1988
Object
52554
| basic design | ||
|---|---|---|
| basic design: cross bed | ||
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 3 | |
| X-axis travel: | 1120 | mm |
| Y-axis travel: | 350 | mm |
| Z-axis travel: | 400 | mm |
| distance spindle nose - table surface (max.): | 420 | mm |
| Table | ||
|---|---|---|
| table surface (left-right): | 1600 | mm |
| table surface (front-back): | 400 | mm |
| workpiece load (max): | 1500 | kg |
| spindle / head | ||
|---|---|---|
| spindle type: tilting head | ||
| - mode of operation: manual | ||
| - mode of operation: manual | ||
| spindle revolutions (max): | 28 | /min |
| number of gears: | 1400 | |
| tool fixture: ISO SK 40 | ||
| Axis drives | ||
|---|---|---|
| feed velocity (min): | 16 | mm/min |
| feed velocity (max): | 800 | mm/min |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 14.5 | kW |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 2700 | mm |
| space requirements -front/back-: | 2350 | mm |
| total height: | 2150 | mm |
| total weight approx.: | 3700 | kg |
| attachments | ||
|---|---|---|
| angular milling head: yes | ||
| Conventional milling machine with universal milling head with two 90° rotation axes for any angle |
| Conventional milling machine with universal milling head with two 90° rotation axes for any angle |
