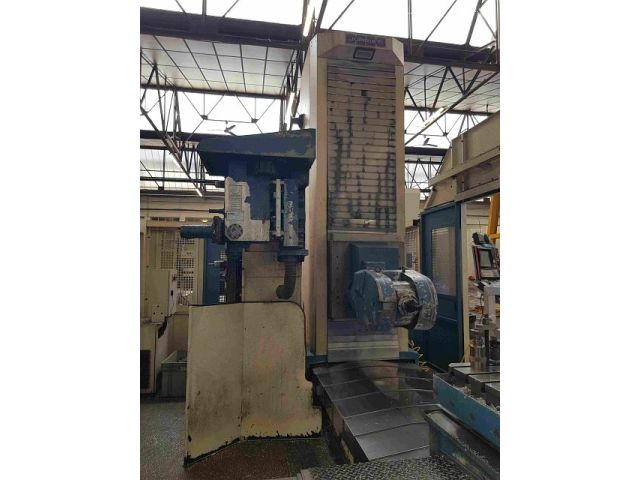

JUARISTI TX15 MG12
Categories
Milling Machine (floor type)
Object
52802
Brand
JUARISTI
Model
TX15 MG12
YoM
2010
Controls
NUM 1060 M
Object
52802
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 2 | |
| X-axis travel: | 3000 | mm |
| Y-axis travel: | 2010 | mm |
| Z-axis travel: | 2000 | mm |
| rotating range A-axis from: | 92.5 | ° |
| rotating range C-axis up to: | 360 | ° |
| Table | ||
|---|---|---|
| table surface (left-right): | 1450 | mm |
| table surface (front-back): | 1600 | mm |
| Floor Plate | ||
|---|---|---|
| total weight approx.: | 12000 | kg |
| spindle / head | ||
|---|---|---|
| spindle revolutions (max): | 3000 | /min |
| tool fixture: ISO SK 50 | ||
| drive power: | 37 | kW |
| Axis drives | ||
|---|---|---|
| traverse velocity X (max): | 25000 | mm/min |
| traverse velocity Y (max): | 25000 | mm/min |
| traverse velocity Z (max): | 25000 | mm/min |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| attachments | ||
|---|---|---|
| chip conveyor: yes | ||
| through spindle coolant attachment: yes | ||
