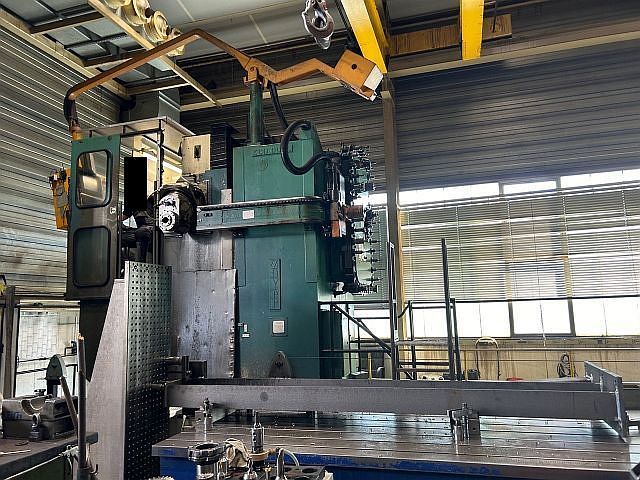

ZAYER KCU9000
Categories
Milling Machine (floor type)
Object
52866
Brand
ZAYER
Model
KCU9000
YoM
1991
Controls
HEIDENHAIN TNC 415
Object
52866
| Working Range -cubic- | ||
|---|---|---|
| X-axis travel: | 9000 | mm |
| Y-axis travel: | 1500 | mm |
| Z-axis travel: | 2500 | mm |
| Table | ||
|---|---|---|
| table surface (left-right): | 12000 | mm |
| table surface (front-back): | 2000 | mm |
| workpiece load (max): | 20000 | kg |
| spindle / head | ||
|---|---|---|
| spindle type: tilting head | ||
| spindle revolutions (max): | 3000 | /min |
| tool fixture: ISO SK 50 | ||
| drive power: | 69 | kW |
| Axis drives | ||
|---|---|---|
| rapid traverse X: | 10000 | mm/min |
| rapid traverse Y: | 15000 | mm/min |
| rapid traverse Z: | 15000 | mm/min |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| total weight approx.: | 35000 | kg |
| attachments | ||
|---|---|---|
| chip conveyor: yes | ||
| coolant unit: yes | ||
| ATC 40 places Tool diameter max. 160 mm 1 x operating panel at the back 3D model incl. Kinematics Electronic hand-wheel wired External cooling KSS coolant Coolant tank Chip conveyor at the back Can be seen under power in German production. In good working condition. 13330 hours |
