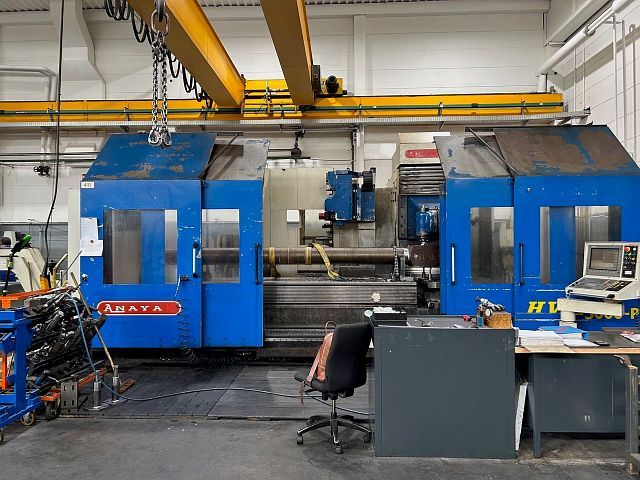

ANAYAK HVM 5000 P
Categories
Milling Machine (floor type)
Object
52869
Brand
ANAYAK
Model
HVM 5000 P
YoM
2005
Controls
HEIDENHAIN ITNC 530
Object
52869
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 5 | |
| X-axis travel: | 5000 | mm |
| Y-axis travel: | 1500 | mm |
| Z-axis travel: | 1050 | mm |
| rotating range A-axis from: | -225 | ° |
| rotating range A-axis up to: | 45 | ° |
| rotating range B-axis from: | -180 | ° |
| rotating range B-axis up to: | 165 | ° |
| rotating range C-axis from: | 360 | ° |
| rotating range C-axis up to: | 360 | ° |
| Table | ||
|---|---|---|
| table surface (left-right): | 3410 | mm |
| table surface (front-back): | 1000 | mm |
| workpiece load (max): | 5000 | kg |
| Floor Plate | ||
|---|---|---|
| table surface (left-right): | 3410 | mm |
| table surface (front-back): | 1000 | mm |
| spindle / head | ||
|---|---|---|
| spindle revolutions (min): | 60 | /min |
| spindle revolutions (max): | 5000 | /min |
| tool fixture: ISO SK 50 | ||
| Axis drives | ||
|---|---|---|
| traverse velocity X (max): | 10000 | mm/min |
| traverse velocity Y (max): | 10000 | mm/min |
| traverse velocity Z (max): | 6000 | mm/min |
| rapid traverse X: | 22500 | mm/min |
| rapid traverse Y: | 20000 | mm/min |
| rapid traverse Z: | 10000 | mm/min |
| Dimensions / weights | ||
|---|---|---|
| total weight approx.: | 43500 | kg |
| attachments | ||
|---|---|---|
| chip conveyor: yes | ||
| 1 rotary table (360°) 1000 x 1000 mm, load 5000 kg 40 tool places Tool dimensions: Diameter of the neighbouring free spaces 200 mm Diameter of the neighbouring occupied spaces 125 mm Max. Max. length 400 mm Max. Max. weight 25 kg Hydraulic unit: 28 L/min Chip conveyor Workpiece measuring system: Radio measuring system TS460 Heidenhain Spindle hours: 16,966 h IKZ: 26L/min 22bar Cooling unit MSF31.8 /2P (for cooling head oil) Machine is in very good operating condition. |
| 1 rotary table (360°) 1000 x 1000 mm, load 5000 kg 40 tool places Tool dimensions: Diameter of the neighbouring free spaces 200 mm Diameter of the neighbouring occupied spaces 125 mm Max. Max. length 400 mm Max. Max. weight 25 kg Hydraulic unit: 28 L/min Chip conveyor Workpiece measuring system: Radio measuring system TS460 Heidenhain Spindle hours: 16,966 h IKZ: 26L/min 22bar Cooling unit MSF31.8 /2P (for cooling head oil) Machine is in very good operating condition. |
