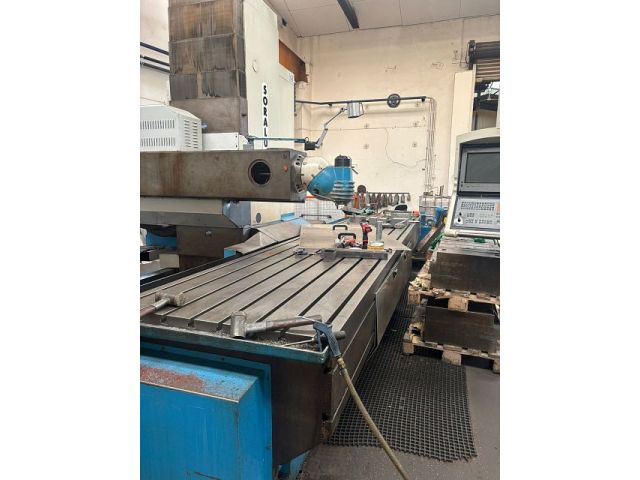

SORALUCE SP 6000
Categories
Milling Machine (floor type)
Object
53430
Brand
SORALUCE
Model
SP 6000
YoM
1998
Controls
HEIDENHAIN TNC 430
Object
53430
| basic design | ||
|---|---|---|
| basic design: moving column | ||
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 3 | |
| .. among of them simultaneous CNC axes: | 3 | |
| X-axis travel: | 4500 | mm |
| Y-axis travel: | 1200 | mm |
| Z-axis travel: | 1600 | mm |
| Table | ||
|---|---|---|
| table surface (left-right): | 6000 | mm |
| table surface (front-back): | 1000 | mm |
| spindle / head | ||
|---|---|---|
| spindle type: tilting head | ||
| rotation axis: B | ||
| - mode of operation: automatic | ||
| - positioning/indexing: | 2.5 | ° |
| rotation axis: C | ||
| - mode of operation: automatic | ||
| - positioning/indexing: | 2.5 | ° |
| spindle revolutions (max): | 4000 | /min |
| tool fixture: ISO SK 50 | ||
