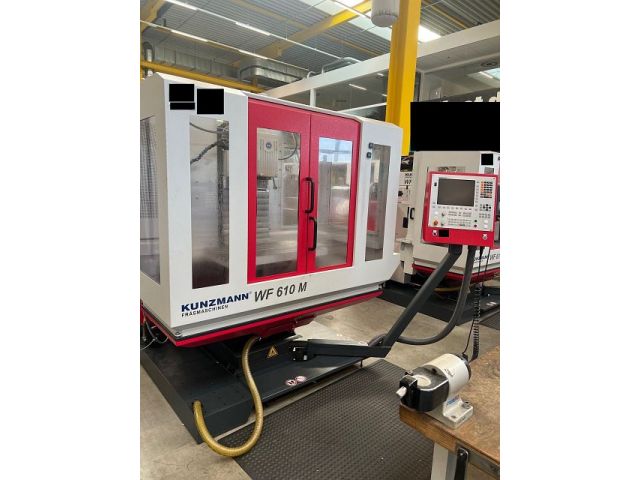

KUNZMANN WF610M
Categories
Milling Machine, universal
Object
55062
Brand
KUNZMANN
Model
WF610M
YoM
2017
Controls
HEIDENHAIN TNC 128
Object
55062
| Working Range -cubic- | ||
|---|---|---|
| X-axis travel: | 610 | mm |
| Y-axis travel: | 400 | mm |
| Z-axis travel: | 450 | mm |
| Table | ||
|---|---|---|
| table surface (left-right): | 800 | mm |
| table surface (front-back): | 425 | mm |
| workpiece load (max): | 300 | kg |
| spindle / head | ||
|---|---|---|
| spindle revolutions (max): | 4500 | /min |
| tool fixture: ISO SK 40 | ||
| Axis drives | ||
|---|---|---|
| traverse velocity X (max): | 2000 | mm/min |
| traverse velocity Y (max): | 2000 | mm/min |
| traverse velocity Z (max): | 2000 | mm/min |
| rapid traverse X: | 5000 | mm/min |
| rapid traverse Y: | 5000 | mm/min |
| rapid traverse Z: | 4000 | mm/min |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 1800 | mm |
| space requirements -front/back-: | 1800 | mm |
| total height: | 2000 | mm |
| total weight approx.: | 2300 | kg |
| attachments | ||
|---|---|---|
| coolant unit: yes | ||
| closed cabin: yes | ||
| European CE standards: yes | ||
| Condition: - as new (barely used) - approx. 1000 spindle hours - all axes can also be operated with a handwheel Vise available at an additional cost of EUR 400. |
