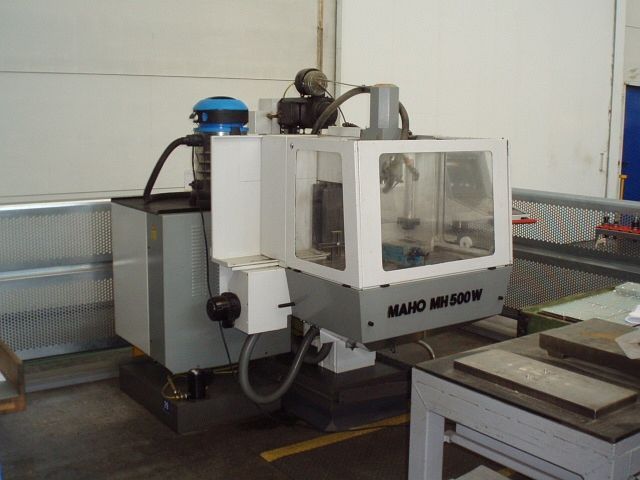

MAHO MH 500 W 4
Categories
Milling Machine, universal
Object
56822
Brand
MAHO
Model
MH 500 W 4
YoM
1991
Controls
HEIDENHAIN TNC 432
Object
56822
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 3 | |
| X-axis travel: | 500 | mm |
| Y-axis travel: | 380 | mm |
| Z-axis travel: | 350 | mm |
| Table | ||
|---|---|---|
| workpiece load (max): | 300 | kg |
| spindle / head | ||
|---|---|---|
| spindle revolutions (min): | 20 | /min |
| spindle revolutions (max): | 5000 | /min |
| tool fixture: ISO SK 40 | ||
| sleeve stroke: | 50 | mm |
| Axis drives | ||
|---|---|---|
| feed velocity (max): | 2000 | mm/min |
| rapid traverse: | 4000 | mm/min |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Accessories: - 25 SK40 tool holders (see photo) - 1 machine vice - optical tool presetting device from Messma Kelch - milling head quill, manual stroke 50 mm |
