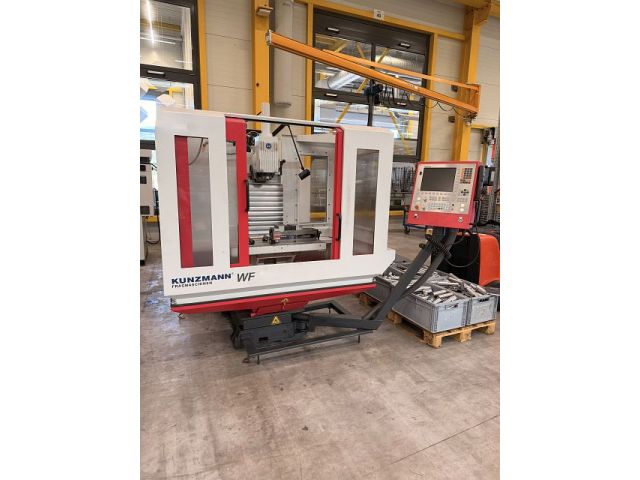

KUNZMANN WF610M
Categories
Milling Machine, universal
Object
57359
Brand
KUNZMANN
Model
WF610M
YoM
2018
Controls
HEIDENHAIN TNC 128
Object
57359
| Working Range -cubic- | ||
|---|---|---|
| X-axis travel: | 610 | mm |
| Y-axis travel: | 400 | mm |
| Z-axis travel: | 450 | mm |
| Table | ||
|---|---|---|
| table surface (left-right): | 800 | mm |
| table surface (front-back): | 425 | mm |
| workpiece load (max): | 300 | kg |
| spindle / head | ||
|---|---|---|
| spindle revolutions (max): | 4500 | /min |
| tool fixture: ISO SK 40 | ||
| Dimensions / weights | ||
|---|---|---|
| total weight approx.: | 2300 | kg |
| attachments | ||
|---|---|---|
| coolant unit: yes | ||
| closed cabin: yes | ||
| European CE standards: yes | ||
| Approx. 1,000 operating hours. The Bench vise can be purchased optionally. |
