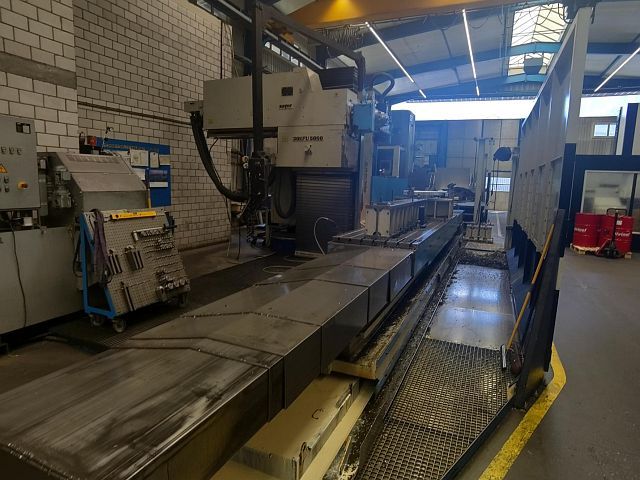

ZAYER 30 KFU 5000
Categories
Bed Type Milling Machine, universal
Object
57433
Brand
ZAYER
Model
30 KFU 5000
YoM
2001
Controls
SIEMENS 840 D
Object
57433
| Working Range -cubic- | ||
|---|---|---|
| number of processing axes (excl parallel axes): | 3 | |
| X-axis travel: | 4700 | mm |
| Y-axis travel: | 1250 | mm |
| Z-axis travel: | 1500 | mm |
| Table | ||
|---|---|---|
| table surface (left-right): | 5000 | mm |
| table surface (front-back): | 1000 | mm |
| workpiece load (max): | 10000 | kg |
| spindle / head | ||
|---|---|---|
| spindle revolutions (min): | 35 | /min |
| spindle revolutions (max): | 3000 | /min |
| tool fixture: ISO SK 50 | ||
| Tool magazine | ||
|---|---|---|
| number of positions: | 30 | |
| Axis drives | ||
|---|---|---|
| rapid traverse: | 20000 | mm/min |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 37 | kW |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
