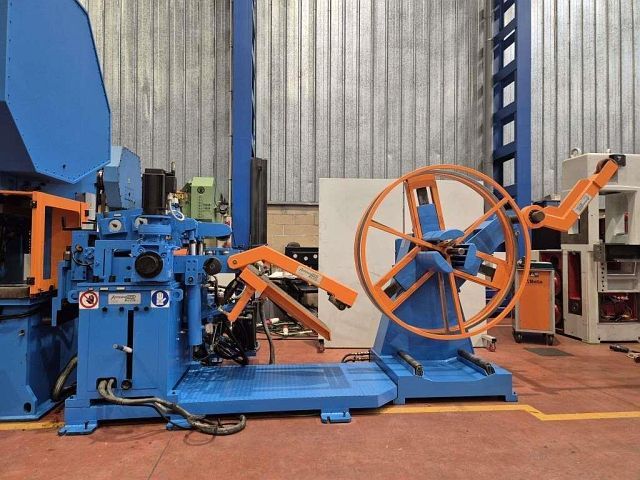

ASSERVIMENTI PRESSE CR-AP 250 + SM 20
Categories
Coil Reel & Straightener
Object
55886
Brand
ASSERVIMENTI PRESSE
Model
CR-AP 250 + SM 20
YoM
2005
Object
55886
| Overall Specifications (coil lines) | ||
|---|---|---|
| sheet width max.: | 250 | mm |
| sheet thickness max.: | 4 | mm |
| coil weight max.: | 2 | to |
| feed velocity max.: | 50 | m/min |
| Coil Chair | ||
|---|---|---|
| coil weight max.: | 2 | to |
| Decoiler | ||
|---|---|---|
| design: single reel | ||
| sheet width max.: | 400 | mm |
| coil weight max.: | 2 | to |
| max. diameter of coil: | 1400 | mm |
| mandrel expansion range from: | 350 | mm |
| mandrel expansion range up to: | 640 | mm |
| Leveller Unit | ||
|---|---|---|
| sheet width max.: | 250 | mm |
| sheet thickness max.: | 4 | mm |
| sheet thickness min.: | 0.5 | mm |
| number of leveller rolls: | 11 | |
| diameter of leveller rolls: | 60 | mm |
| feed velocity max.: | 50 | m/min |
| drive power: | 5.5 | kW |
| Strip-Feeder | ||
|---|---|---|
| feeder type: roll feeder | ||
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 3700 | mm |
| space requirements -front/back-: | 1690 | mm |
| total height: | 1850 | mm |
| total weight approx.: | 3100 | kg |
