SCHLEICHER RM 8-70 EW 160
Categories
Coil Reel & Straightener
Object
57007
Brand
SCHLEICHER
Model
RM 8-70 EW 160
YoM
1979
Object
57007
| Decoiler | ||
|---|---|---|
| sheet width max.: | 1050 | mm |
| coil weight max.: | 5 | to |
| Leveller Unit | ||
|---|---|---|
| sheet width max.: | 1000 | mm |
| sheet thickness max.: | 5 | mm |
| sheet thickness min.: | 0.4 | mm |
| Strip-Feeder | ||
|---|---|---|
| feeder type: roll feeder | ||

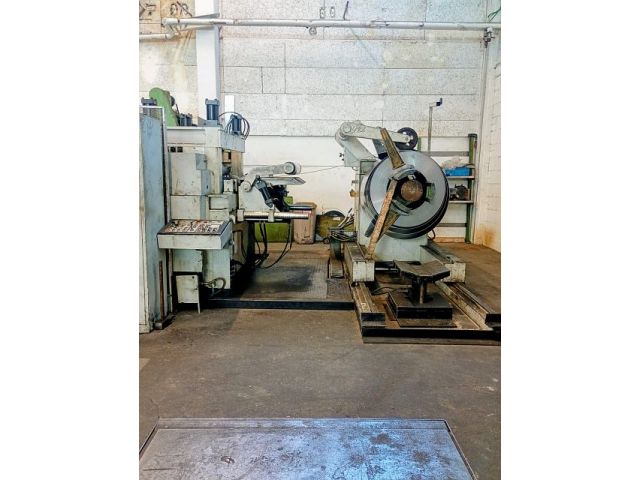

| SCHLEICHER H-5 coil unwinder, max. load 5 t, power 3.92 kW, strip width 1,050 mm, with lifting table; SCHLEICHER RM8-70 EW 160 straightening machine, year of manufacture 1979, 38,712 operating hours, power 7.62 kW, strip width 1,000 mm, strip thickness 0.4 - 5 mm, 4 straightening rollers each on top and bottom, SCHLEICHER feeder |
| SCHLEICHER H-5 coil unwinder, max. load 5 t, power 3.92 kW, strip width 1,050 mm, with lifting table; SCHLEICHER RM8-70 EW 160 straightening machine, year of manufacture 1979, 38,712 operating hours, power 7.62 kW, strip width 1,000 mm, strip thickness 0.4 - 5 mm, 4 straightening rollers each on top and bottom, SCHLEICHER feeder |
