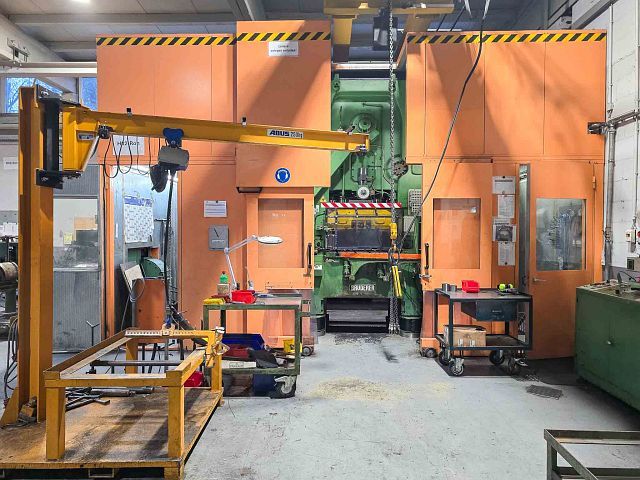

BRUDERER BSTA 110
Categories
Blanking Press
Object
57182
Brand
BRUDERER
Model
BSTA 110
YoM
1977
Object
57182
| Press forces | ||
|---|---|---|
| total force (nominal): | 110 | to |
| slide (mechan. Press) | ||
|---|---|---|
| slide adjustment: | 89 | mm |
| stroke min.: | 16 | mm |
| stroke max.: | 75 | mm |
| stroke rate (min.): | 100 | /min |
| stroke rate (max.): | 850 | /min |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 375 | mm |
| Overall Specifications (coil lines) | ||
|---|---|---|
| sheet width max.: | 260 | mm |
| sheet thickness max.: | 1.5 | mm |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 3320 | mm |
| space requirements -front/back-: | 2250 | mm |
| total height: | 3930 | mm |
| total weight approx.: | 24600 | kg |
| Attachments (presses) | ||
|---|---|---|
| decoiler: yes | ||
| strip feeder: yes | ||
| feeder type: roll feeder | ||
| Strip Feed Unit Manufacturer: Bruderer Type: BBV 320/200 Accessories Kohler decoiler 18 260/19-1000.2 (YoM 1987) |
