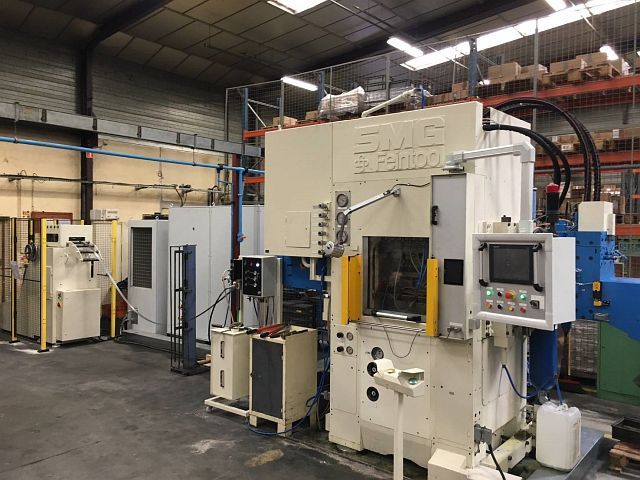

FEINTOOL HFA 320
Categories
Fine Blanking Press -hydraulical-
Object
42362
Brand
FEINTOOL
Model
HFA 320
YoM
1987
Last Overhaul
2019
Object
42362
| Press Design | ||
|---|---|---|
| drive system: hydraulic | ||
| Slide | ||
|---|---|---|
| total force (nominal): | 320 | to |
| stroke: | 80 | mm |
| stroke rate (max.): | 80 | /min |
| Counter Ram | ||
|---|---|---|
| nominal force: | 80 | to |
| stroke: | 30 | mm |
| V-Ring | ||
|---|---|---|
| nominal force: | 160 | to |
| stroke: | 30 | mm |
| Tool Dimensions | ||
|---|---|---|
| lower table (left-right): | 630 | mm |
| lower table (front-back): | 740 | mm |
| upper table (left-right): | 630 | mm |
| upper table (front-back): | 630 | mm |
| shut height max.: | 320 | mm |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 60 | kW |
| Attachments -Fineblanking Press- | ||
|---|---|---|
| closed cabin: yes | ||
| decoiler: yes | ||
| leveller unit: yes | ||
| waste cutter: yes | ||
