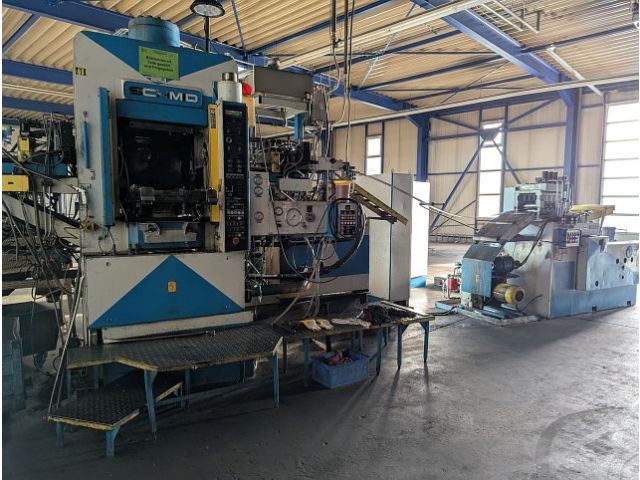

SCHMID HSR320
Categories
Fine Blanking Press
Object
55624
Brand
SCHMID
Model
HSR320
YoM
1990
Object
55624
| Press forces | ||
|---|---|---|
| total force (nominal): | 320 | to |
| Counter Ram | ||
|---|---|---|
| nominal force: | 55 | to |
| V-Ring | ||
|---|---|---|
| nominal force: | 150 | to |
| Tool Dimensions | ||
|---|---|---|
| lower table (left-right): | 550 | mm |
| lower table (front-back): | 550 | mm |
| upper table (left-right): | 695 | mm |
| upper table (front-back): | 730 | mm |
| shut height max.: | 500 | mm |
| distance between columns (H-frame): | 705 | mm |
| passline opening (free passage in side columns): | 290 | mm |
| Slide | ||
|---|---|---|
| stroke: | 120 | mm |
| slide (hydr. Press) | ||
|---|---|---|
| working velocity min.: | 20 | mm/s |
| working velocity max.: | 100 | mm/s |
