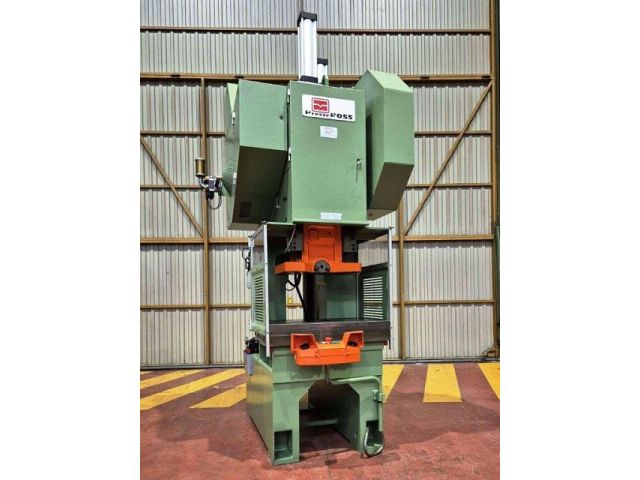

ROSS 80R4
Categories
Power Press (C-frame)
Object
55280
Brand
ROSS
Model
80R4
YoM
2003
Object
55280
| Press Design | ||
|---|---|---|
| drive system: eccentric / crank | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 80 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 860 | mm |
| table surface (front-back): | 620 | mm |
| thickness of bolster plate: | 70 | mm |
| opening in bed (diameter): | 165 | mm |
| Slide | ||
|---|---|---|
| table surface (left-right): | 570 | mm |
| table surface (front-back): | 390 | mm |
| spigot hole diameter: | 50 | mm |
| stroke: | 120 | mm |
| slide (mechan. Press) | ||
|---|---|---|
| slide adjustment: | 90 | mm |
| stroke min.: | 9 | mm |
| stroke max.: | 120 | mm |
| main drive power: | 5.5 | kW |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 360 | mm |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 1420 | mm |
| space requirements -front/back-: | 1700 | mm |
| total height: | 2990 | mm |
| total weight approx.: | 5600 | kg |
