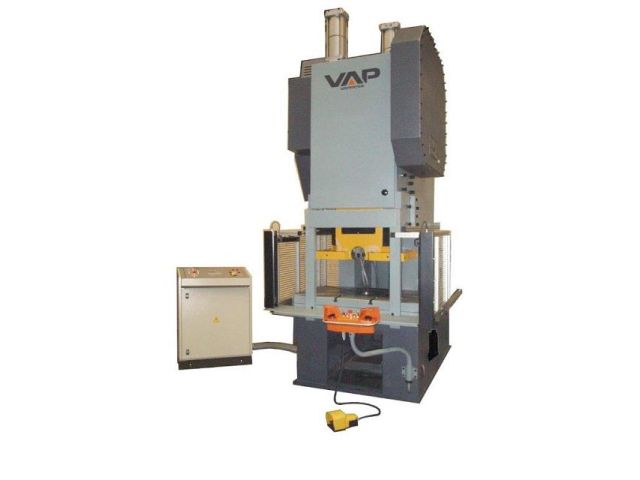

VAPRESS/DELTECO PE-130 AM
Categories
Power Press (C-frame)
Object
55883
Brand
VAPRESS/DELTECO
Model
PE-130 AM
YoM
2008
Object
55883
| Press Design | ||
|---|---|---|
| drive system: eccentric / crank | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 130 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 1200 | mm |
| table surface (front-back): | 700 | mm |
| thickness of bolster plate: | 80 | mm |
| Slide | ||
|---|---|---|
| table surface (left-right): | 750 | mm |
| table surface (front-back): | 550 | mm |
| stroke rate (max.): | 60 | /min |
| slide (mechan. Press) | ||
|---|---|---|
| slide adjustment: | 100 | mm |
| stroke min.: | 19 | mm |
| stroke max.: | 165 | mm |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 525 | mm |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 11 | kW |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 1685 | mm |
| space requirements -front/back-: | 1910 | mm |
| total height: | 3340 | mm |
| total weight approx.: | 11000 | kg |
