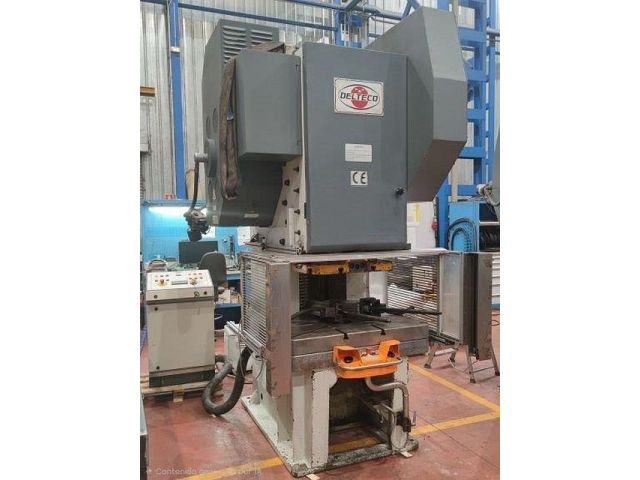

DELTECO PE-100
Categories
Power Press (C-frame)
Object
55884
Brand
DELTECO
Model
PE-100
YoM
1999
Object
55884
| Press Design | ||
|---|---|---|
| drive system: eccentric / crank | ||
| table cushion: yes | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 100 | to |
| nominal work capacity: | 1000 | kNm |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 1100 | mm |
| table surface (front-back): | 660 | mm |
| thickness of bolster plate: | 100 | mm |
| Slide | ||
|---|---|---|
| table surface (left-right): | 640 | mm |
| table surface (front-back): | 420 | mm |
| spigot hole diameter: | 50 | mm |
| stroke: | 130 | mm |
| stroke rate (max.): | 60 | /min |
| slide (mechan. Press) | ||
|---|---|---|
| slide adjustment: | 110 | mm |
| stroke min.: | 20 | mm |
| stroke max.: | 130 | mm |
| Die Cushion (table cushion) | ||
|---|---|---|
| number of cushions: | 1 | |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 450 | mm |
| distance table - slide max.: | 580 | mm |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 7.5 | kW |
| mains voltage: | 380 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 1610 | mm |
| space requirements -front/back-: | 1785 | mm |
| total height: | 3230 | mm |
| total weight approx.: | 7000 | kg |
| Attachments (presses) | ||
|---|---|---|
| decoiler: optional | ||
| leveller unit: optional | ||
| strip feeder: optional | ||
| 2-hand engagement: yes | ||
| foot engagement: yes | ||
| European CE standards: yes | ||
