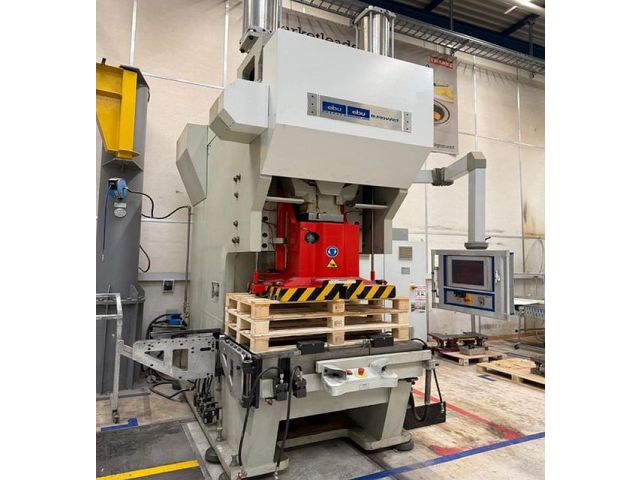

BURKHARDT HK 160L/SO
Categories
Power Press (C-frame)
Object
56416
Brand
BURKHARDT
Model
HK 160L/SO
YoM
2006
Controls
SIEMENS SIMATIC
Object
56416
| Press Design | ||
|---|---|---|
| drive system: eccentric / crank | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 160 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 1200 | mm |
| table surface (front-back): | 970 | mm |
| Slide | ||
|---|---|---|
| stroke rate (max.): | 90 | /min |
| slide (mechan. Press) | ||
|---|---|---|
| slide adjustment: | 120 | mm |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 3200 | mm |
| space requirements -front/back-: | 1600 | mm |
| total height: | 4400 | mm |
| total weight approx.: | 32000 | kg |
