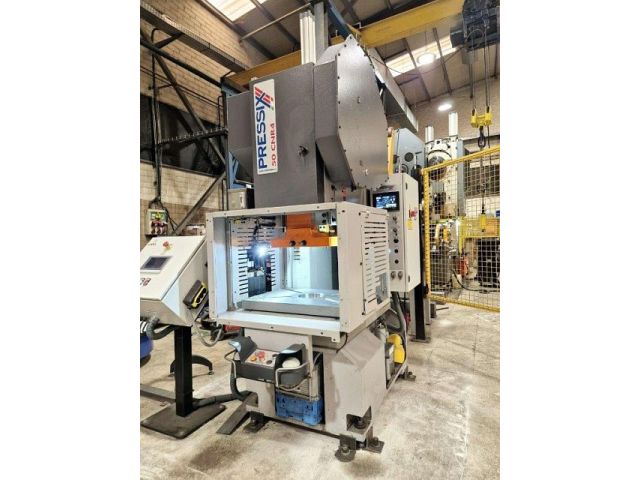

PRESSIX 50 CNR 4
Categories
Power Press (C-frame)
Object
56923
Brand
PRESSIX
Model
50 CNR 4
YoM
2023
Object
56923
| Press Design | ||
|---|---|---|
| drive system: eccentric / crank | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 50 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 770 | mm |
| table surface (front-back): | 530 | mm |
| thickness of bolster plate: | 58 | mm |
| Slide | ||
|---|---|---|
| table surface (left-right): | 450 | mm |
| table surface (front-back): | 300 | mm |
| spigot hole diameter: | 50 | mm |
| stroke: | 110 | mm |
| stroke rate (max.): | 120 | /min |
| slide (mechan. Press) | ||
|---|---|---|
| slide adjustment: | 70 | mm |
| stroke min.: | 4 | mm |
| stroke max.: | 110 | mm |
| variable speed: yes | ||
| stroke rate (min.): | 40 | /min |
| stroke rate (max.): | 120 | /min |
| hydraulic overload protection: yes | ||
| main drive power: | 4 | kW |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 275 | mm |
| throat (C-frame): | 270 | mm |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 4 | kW |
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 1200 | mm |
| space requirements -front/back-: | 1490 | mm |
| total height: | 2510 | mm |
| total weight approx.: | 3600 | kg |
| Attachments (presses) | ||
|---|---|---|
| decoiler: yes | ||
| leveller unit: no | ||
| strip feeder: yes | ||
| feeder type: roll feeder | ||
| press automation: optional | ||
| light barrier: yes | ||
| 2-hand engagement: yes | ||
| foot engagement: yes | ||
| European CE standards: yes | ||
| Feed line included. Composed of: Horizontal decoiler Brand: LARA Model: DHP-1200/2000.19 CHARACTERISTICS Maximum load: 2000 kg Maximum width: 150 mm Maximum thickness: 1.5 mm Maximum pallet height: 700 mm Base diameter: 1250 mm Motor power: 0.37 kW Rotation speed: 2 to 10 rpm CNC roller feeder Brand: LARA Model: AE-0/110-KOMPACT CHARACTERISTICS Maximum width: 110 mm Maximum thickness: 2 mm Feed section: 220 mm² Maximum width x maximum thickness: 110 x 2 mm Feed roller diameter: 48 mm Continuous speed: 180 m/min Feed accuracy: ±0.05 mm Height adjustment: ±30 mm |
