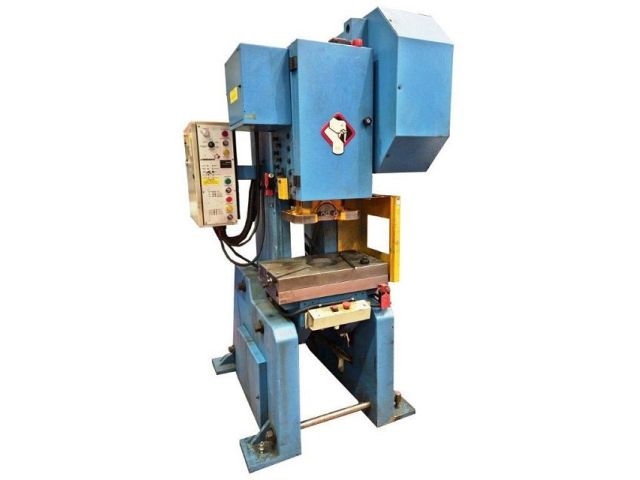

SANGIACOMO T-30 CE
Categories
Power Press (C-frame)
Object
57128
Brand
SANGIACOMO
Model
T-30 CE
YoM
1999
Object
57128
| Press Design | ||
|---|---|---|
| drive system: eccentric / crank | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 30 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 580 | mm |
| table surface (front-back): | 360 | mm |
| thickness of bolster plate: | 60 | mm |
| opening in bed (diameter): | 110 | mm |
| Slide | ||
|---|---|---|
| table surface (left-right): | 350 | mm |
| table surface (front-back): | 250 | mm |
| spigot hole diameter: | 40 | mm |
| slide (mechan. Press) | ||
|---|---|---|
| slide adjustment: | 60 | mm |
| stroke min.: | 9 | mm |
| stroke max.: | 76 | mm |
| stroke rate (max.): | 140 | /min |
| main drive power: | 2.2 | kW |
| Tool Assembly Dimensions | ||
|---|---|---|
| distance table - slide max.: | 214 | mm |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 2.25 | kW |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 1.08 | mm |
| space requirements -front/back-: | 1.05 | mm |
| total height: | 2.1 | mm |
| total weight approx.: | 1800 | kg |
| Attachments (presses) | ||
|---|---|---|
| 2-hand engagement: yes | ||
| European CE standards: yes | ||
