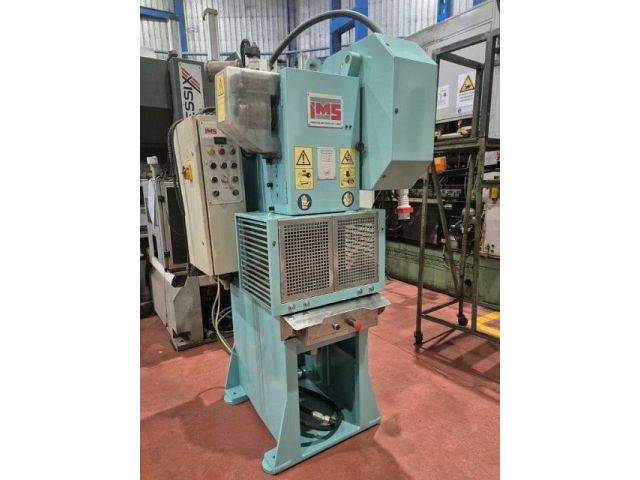

IMS 25-VE
Categories
Power Press (C-frame)
Object
57487
Brand
IMS
Model
25-VE
YoM
2000
Object
57487
| Press Design | ||
|---|---|---|
| drive system: eccentric / crank | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 25 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 500 | mm |
| table surface (front-back): | 310 | mm |
| Slide | ||
|---|---|---|
| table surface (left-right): | 250 | mm |
| table surface (front-back): | 133 | mm |
| spigot hole diameter: | 40 | mm |
| stroke rate (max.): | 155 | /min |
| slide (mechan. Press) | ||
|---|---|---|
| slide adjustment: | 50 | mm |
| stroke min.: | 0 | mm |
| stroke max.: | 60 | mm |
| main drive power: | 1.5 | kW |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 275 | mm |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 980 | mm |
| space requirements -front/back-: | 1000 | mm |
| total height: | 1890 | mm |
| total weight approx.: | 950 | kg |
