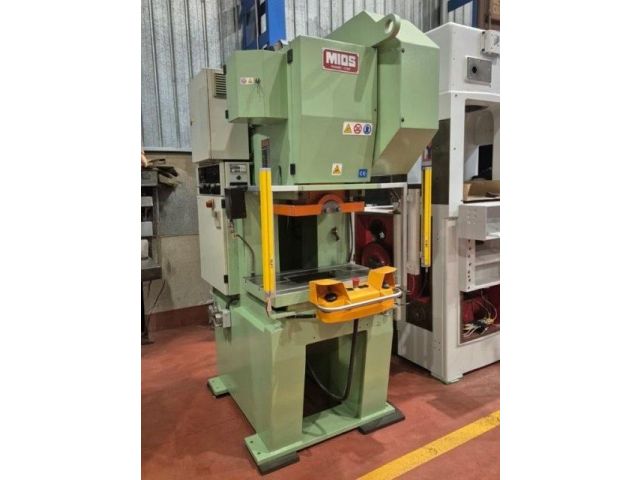

MIOS T45-TV
Categories
Power Press (C-frame)
Object
57532
Brand
MIOS
Model
T45-TV
YoM
2003
Object
57532
| Press Design | ||
|---|---|---|
| drive system: eccentric / crank | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 45 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 750 | mm |
| table surface (front-back): | 440 | mm |
| thickness of bolster plate: | 60 | mm |
| Slide | ||
|---|---|---|
| table surface (left-right): | 460 | mm |
| table surface (front-back): | 300 | mm |
| spigot hole diameter: | 45 | mm |
| stroke: | 80 | mm |
| stroke rate (max.): | 140 | /min |
| slide (mechan. Press) | ||
|---|---|---|
| slide adjustment: | 70 | mm |
| stroke min.: | 10 | mm |
| stroke max.: | 80 | mm |
| stroke rate (min.): | 70 | /min |
| stroke rate (max.): | 190 | /min |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 370 | mm |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 1225 | mm |
| space requirements -front/back-: | 1355 | mm |
| total height: | 2450 | mm |
| total weight approx.: | 3100 | kg |
| Attachments (presses) | ||
|---|---|---|
| strip feeder: optional | ||
| feeder type: grip feeder | ||
| foot engagement: optional | ||
| European CE standards: yes | ||
