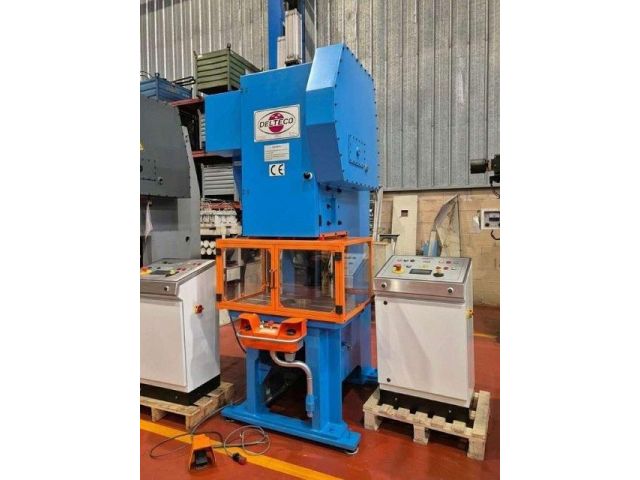

DELTECO PE-63
Categories
Power Press (C-frame)
Object
57603
Brand
DELTECO
Model
PE-63
YoM
1999
Object
57603
| Press Design | ||
|---|---|---|
| drive system: eccentric / crank | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 63 | to |
| nominal work capacity: | 630 | kNm |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 900 | mm |
| table surface (front-back): | 560 | mm |
| thickness of bolster plate: | 250 | mm |
| Slide | ||
|---|---|---|
| table surface (left-right): | 450 | mm |
| table surface (front-back): | 310 | mm |
| spigot hole diameter: | 50 | mm |
| stroke: | 100 | mm |
| stroke rate (max.): | 100 | /min |
| slide (mechan. Press) | ||
|---|---|---|
| slide adjustment: | 80 | mm |
| stroke min.: | 17.5 | mm |
| stroke max.: | 100 | mm |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 340 | mm |
| distance table - slide max.: | 440 | mm |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 5.5 | kW |
| mains voltage: | 380 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 1310 | mm |
| space requirements -front/back-: | 1500 | mm |
| total height: | 2900 | mm |
| total weight approx.: | 4800 | kg |
| Attachments (presses) | ||
|---|---|---|
| safety guard / safety door: yes | ||
| European CE standards: yes | ||
