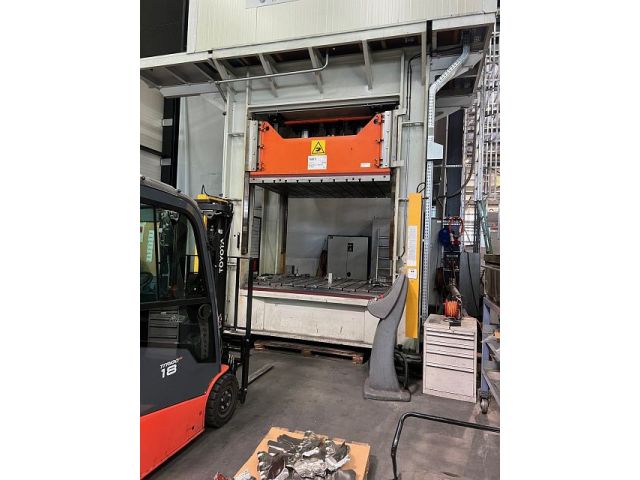

PERISCO SM22/17
Categories
Press -hydraulical-
Object
51908
Brand
PERISCO SM22/17
YoM
2013
Object
51908
| Press Design | ||
|---|---|---|
| drive system: hydraulic | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 300 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 2200 | mm |
| table surface (front-back): | 1700 | mm |
| Slide | ||
|---|---|---|
| stroke: | 1600 | mm |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 1600 | mm |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 6536 | mm |
| space requirements -front/back-: | 2923 | mm |
| total height: | 6135 | mm |
| total weight approx.: | 36000 | kg |
