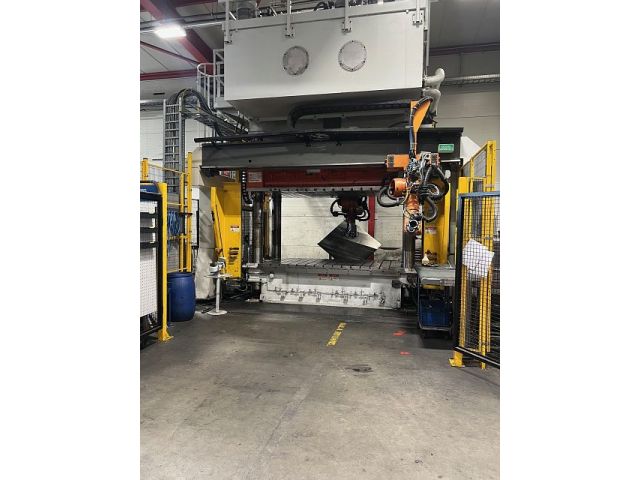

NEFF 4SP
Categories
Press -hydraulical-
Object
51909
Brand
NEFF
Model
4SP
YoM
2012
Object
51909
| Press Design | ||
|---|---|---|
| drive system: hydraulic | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 315 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 3000 | mm |
| table surface (front-back): | 1600 | mm |
| number of T-slots: | 10 | |
| distance between T-slots: | 22 | mm |
| Slide | ||
|---|---|---|
| slide force: | 315 | to |
| table surface (left-right): | 3000 | mm |
| table surface (front-back): | 1600 | mm |
| stroke: | 850 | mm |
| slide (hydr. Press) | ||
|---|---|---|
| working velocity max.: | 800 | mm/s |
| return force: | 25 | to |
| slide ejector / cushion | ||
|---|---|---|
| nominal force: | 315 | to |
| stroke: | 900 | mm |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 6238 | mm |
| space requirements -front/back-: | 5223 | mm |
| total height: | 6370 | mm |
| total weight approx.: | 39600 | kg |
