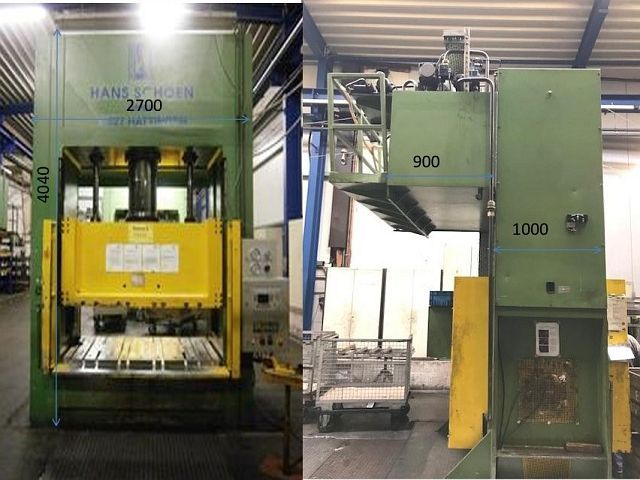

SCHOEN UTE FF 300/80
Categories
Press -hydraulical-
Object
57002
Brand
SCHOEN
Model
UTE FF 300/80
YoM
2000
Controls
SIEMENS SIMATIC OP 27
Object
57002
| Press Design | ||
|---|---|---|
| table cushion: yes | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 300 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 1800 | mm |
| table surface (front-back): | 1000 | mm |
| Slide | ||
|---|---|---|
| stroke: | 600 | mm |
| slide (hydr. Press) | ||
|---|---|---|
| return force: | 38 | to |
| Die Cushion (table cushion) | ||
|---|---|---|
| stroke: | 200 | mm |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 1000 | mm |
| Dimensions / weights | ||
|---|---|---|
| total weight approx.: | 43000 | kg |
| El. cabinet (Ritta) Machine hours: 32510 |
| El. cabinet (Ritta) Machine hours: 32510 |
