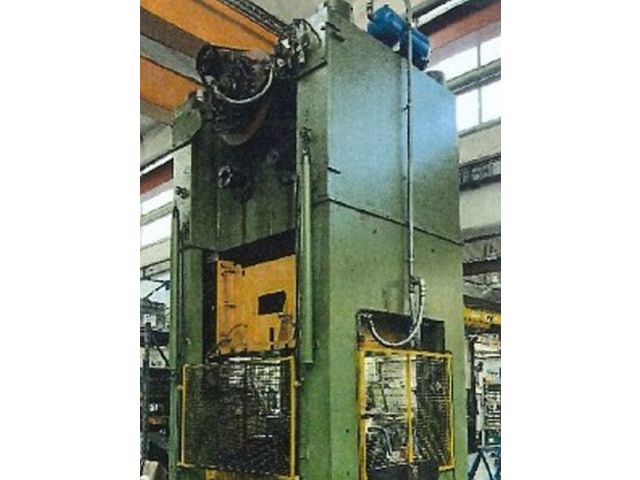

ZANI AF300 2MBT 18.20
Categories
Press -mechanical-
Object
57108
Brand
ZANI
Model
AF300 2MBT 18.20
YoM
1996
Object
57108
| Press Design | ||
|---|---|---|
| drive system: eccentric / crank | ||
| openings in uprights: yes | ||
| number of slide actions: | 2 | |
| Press forces | ||
|---|---|---|
| total force (nominal): | 300 | to |
| Slide | ||
|---|---|---|
| stroke: | 200 | mm |
| stroke rate (max.): | 60 | /min |
| slide (mechan. Press) | ||
|---|---|---|
| slide adjustment: | 100 | mm |
| stroke rate (min.): | 20 | /min |
| stroke rate (max.): | 60 | /min |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 800 | mm |
| Electrical specifications | ||
|---|---|---|
| total power consumption: | 35 | kW |
| mains voltage: | 380 | V |
| Dimensions / weights | ||
|---|---|---|
| total weight approx.: | 38000 | kg |
| Attachments (presses) | ||
|---|---|---|
| European CE standards: yes | ||
| Electrical panel renewed Machine currently in working order, connected |
