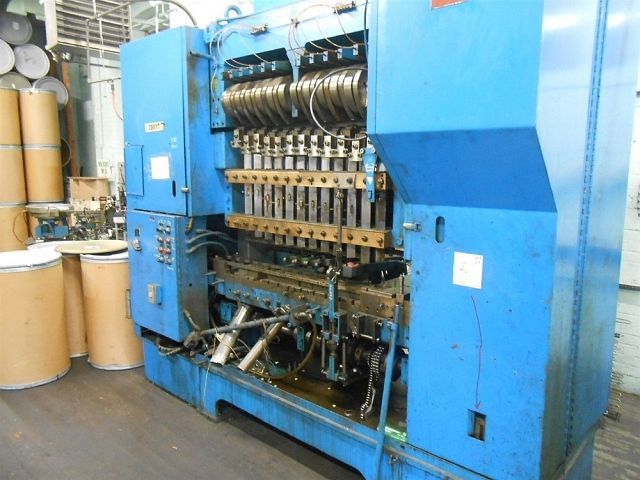

WATERBURY FARRELL 015-012
Categories
Transfer Press -mechanical-
Object
55436
Brand
WATERBURY FARRELL
Model
015-012
Object
55436
| 4 1/4" CAM SHAFT TOTAL STROKE - MEASURED TO BE 4.25. AIR CLUTCH AND BRAKE - MINSTER NEW SIDE SHAFT INCLUDING BUSINGS NEW PINION GEARS- NEW, TOP AND BOTTOM (ALL 4) NEW TRANSFER MECHANISM - DOVE TAIL SLIDE AND BRONZE GIBBS NEW GIBS - FRONT BRONZE CAPS MACHINED AND SCRAPED IN DRAW 2 1/8" SHELL NEW TOP SHAFT IN 2001 - ALL NEW PLUNGER CAMS AND LIFT CAMS 11 STRIPPER FORKS STRIP AND RELEASE SYSTEM STAGGER FEED - PLUMB PRODUCTS PGY6 DUEL CUT - $5,000 EXTRA BIJUR PUMP, CHAIN DRIVE TYPE ON BOTTOM SHAFT. OIL LINES TO ALL BEARING AND MOVING SURFACES 220/440V TYPE: VEHV44-25 SQUARE PLUNGER 15-12 DIMENSIONS: 112" x 55" x 110" PRESS HAS THE UPDATED SECONDARY CHAIN DRIVEN BACK SHAFT WITH CAMS TO DRIVE THE STRIPPER FORKS DOWN FOR HOLD DOWN PRESSURE AND STRIPPING TIMING PRESS IS IN EXCELLENT OVERALL CONDITION. HAS BEEN SITTING FOR 5 YEARS OR MORE |
