LPW POWERJET T4-V TWIN
Categories
Washing Machine - continuous
Object
56417
Brand
LPW
Model
POWERJET T4-V TWIN
YoM
2010
Object
56417
| Surface Treatment, usable Process Space / Zone | ||
|---|---|---|
| length: | 670 | mm |
| width: | 480 | mm |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 4500 | mm |
| space requirements -front/back-: | 3053 | mm |
| total height: | 2500 | mm |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |

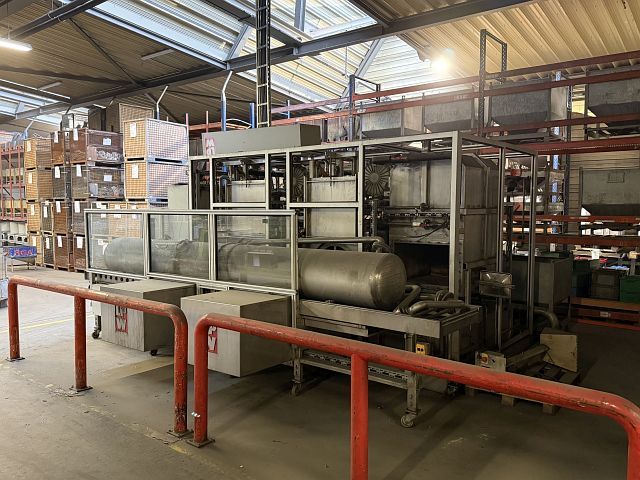

| POWERJET T4-V TWIN continuous cleaning system – powerful and reliable A high-quality POWERJET T4-V TWIN industrial continuous cleaning system from renowned manufacturer LPW Reinigungssysteme GmbH is available for sale. The system is ideal for the efficient cleaning, rinsing, drying and preservation of workpieces in series and batch production. Two working chambers for high throughput and flexible processes Multi-stage cleaning, rinsing and drying process including vacuum and hot air drying Suitable for batch weights up to 200 kg Five freely programmable cleaning programmes Movement options: stationary, rotating and swivelling with adjustable angle Technical data Basket size: 670 × 480 × 300 mm (alternatively stacking baskets) Cycle time: approx. 5–10 minutes per batch Connection: 3 × 400 V / 50 Hz Total connected load: approx. 70 kW + evaporator heating up to 48 kW Filling quantities: up to 550 l per cleaning/rinsing stage Temperatures: Washing/rinsing: approx. 60–70 °C Hot air blast drying: up to 130 °C Dimensions: approx. 4,500 × 2,400 × 2,500 mm System weight: approx. 5,000 kg (without filling) |
