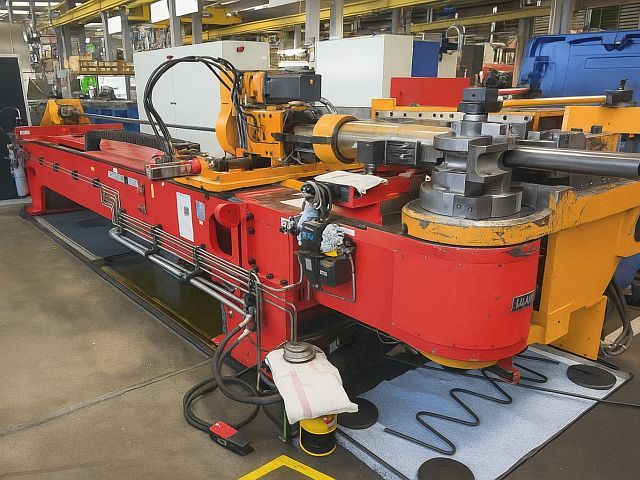

LANG 120 CNC
Categories
Tube Bender
Object
52624
Brand
LANG
Model
120 CNC
YoM
2002
Controls
SIEMENS
Object
52624
| Technical Specification | ||
|---|---|---|
| Max. diameter of tube: | 120 | mm |
| Max. bending radius: | 180 | mm |
| Electrical specifications | ||
|---|---|---|
| mains voltage: | 400 | V |
| mains frequency: | 50 | Hz |
| Dimensions / weights | ||
|---|---|---|
| space requirements -left/right-: | 8000 | mm |
| space requirements -front/back-: | 2600 | mm |
| total height: | 2300 | mm |
| total weight approx.: | 16500 | kg |
| machine in a very good condition Machine in very good condition Special features: - Free-form bending option - Laser scanner for securing the bending area - Foot pedal for safe start - Bending simulation Automation: - CNC control BEND MOTION CONTROL - Automatic mandrel lubrication as MMS Retrofit 2018: - Control system retrofit - Cables replaced - Bending head overhauled - Guides replaced - complete equipment (see photos) (Ø22x2, Ø28x2, Ø38x2.6, Ø42.4x2.6, Ø48.3x2.6, Ø60.3x2.9, Ø76.1x3.2, Ø88.9x3.2, Ø114.3x3.6) Operating hours: about 40`000 hours (one ship) |
