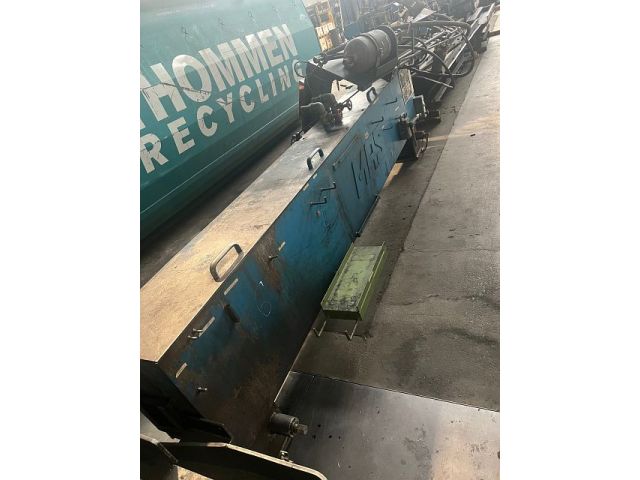

SEUTHE RS 60 RD (HF300)
Categories
Tube Welding Line
Object
52666
Brand
SEUTHE
Model
RS 60 RD (HF300)
YoM
1992
Object
52666
| Feedstock Steel Strip | ||
|---|---|---|
| sheet thickness max.: | 4 | mm |
| sheet thickness min.: | 0.8 | mm |
| Product (profile, tube) | ||
|---|---|---|
| external diameter min.: | 24.9 | mm |
| external diameter max.: | 60 | mm |
| wall thickness min.: | 0.8 | mm |
| wall thickness max.: | 4 | mm |
| Line Characteristics | ||
|---|---|---|
| Forming Process: rollforming | ||
| welding process: HF inductive | ||
| sawing process: travelling | ||
| system consisting of: - large coil reel - Bandschweisseinrichtung - optional: horizontal band loop - side planer - forming unit - HF welding unit - units for outside scarfing, inside scarfing - each without impeders, tooling - cooling section - calibration unit with alternative calibration station for ovals, polygons - flying saw - chip blow unit - hexagon bundling- and binding unit optional roll-sets available for: forming section: 26,30, 32, 36, 38, 40, 44, 46, 52, 60 mm calibration section: 25, 26, 29.5, 29.89, 30, 32, 33, 33.4, 33.5, 33.7, 34, 35, 36, 37, 38, 39, 40, 42.4, 43, 44, 45, 46, 50, 51, 51.5, 57, 58, 60 mm without drawints |
| system consisting of: - large coil reel - Bandschweisseinrichtung - optional: horizontal band loop - side planer - forming unit - HF welding unit - units for outside scarfing, inside scarfing - each without impeders, tooling - cooling section - calibration unit with alternative calibration station for ovals, polygons - flying saw - chip blow unit - hexagon bundling- and binding unit optional roll-sets available for: forming section: 26,30, 32, 36, 38, 40, 44, 46, 52, 60 mm calibration section: 25, 26, 29.5, 29.89, 30, 32, 33, 33.4, 33.5, 33.7, 34, 35, 36, 37, 38, 39, 40, 42.4, 43, 44, 45, 46, 50, 51, 51.5, 57, 58, 60 mm without drawints |
