SCHWAMMBERGER

Características Técnicas

Characteristics Heat Treatment Equipment
Modo: Continuo
Potencia inst. de calefaccion:	43	kW
temperature max.:	1200	°C

Heat Treatment Compartment / Zone
heat treatment process: annealing
heat treatment medium: inert gas
length:	3250	mm
Ancho:	450	mm
Height:	30	mm

Datos de conexión eléctricos
Frecuencia de la red:	50	Hz

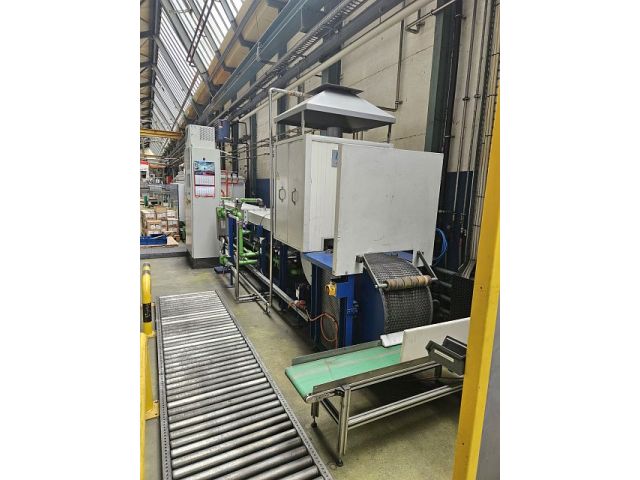

Continuous furnace with gas treatment Type of treatment: Annealing and hardening under protective gas Performance data: Belt load 5 kg/m Working temperature 1050 C° Consumption values: Electrical heating power 43 kW Protective gas consumption 6 m³/h N₂ Forming gas 12 m³/h H₂/N₂ Cooling water delta T15° 2 m³/h Continuous furnace Conveyor width 450 mm Clear height above belt 30 mm Furnace usable length heated 3250 mm Upper limit temperature 1150 C° Working temperature 1050 C° Electrical heating power 96 kW Conveyor belt control range 0-600 mm/min System length 15000 mm System width 1700 mm Furnace height 1900 mm Weight 6500 kg Translated with DeepL.com (free version)

Descripción

Continuous furnace with gas treatment Type of treatment: Annealing and hardening under protective gas Performance data: Belt load 5 kg/m Working temperature 1050 C° Consumption values: Electrical heating power 43 kW Protective gas consumption 6 m³/h N₂ Forming gas 12 m³/h H₂/N₂ Cooling water delta T15° 2 m³/h Continuous furnace Conveyor width 450 mm Clear height above belt 30 mm Furnace usable length heated 3250 mm Upper limit temperature 1150 C° Working temperature 1050 C° Electrical heating power 96 kW Conveyor belt control range 0-600 mm/min System length 15000 mm System width 1700 mm Furnace height 1900 mm Weight 6500 kg Translated with DeepL.com (free version)
