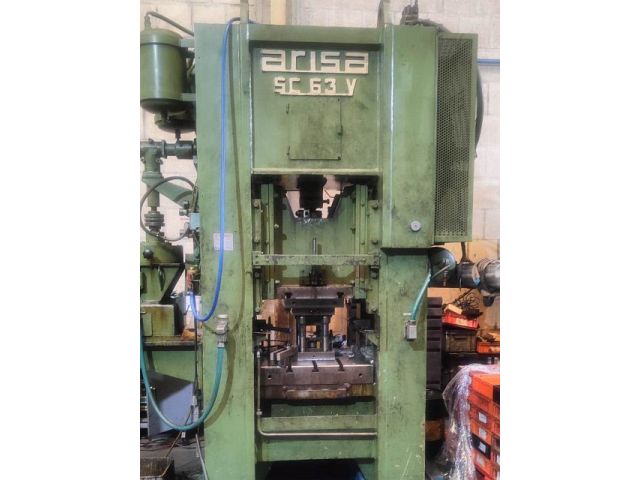

ARISA SC-63-V
Kategorije
Avtomat za štancanje - mehanski
Objekt
43783
Proizvajalec
ARISA
Model
SC-63-V
Objekt
43783
| Press Design | ||
|---|---|---|
| drive system: eccentric / crank | ||
| frame design: H-frame, monoblock | ||
| openings in uprights: yes | ||
| number of slide actions: | 1 | |
| feedstock transport direction: left to right | ||
| Press forces | ||
|---|---|---|
| total force (nominal): | 63 | to |
| Press Table | ||
|---|---|---|
| table surface (left-right): | 675 | mm |
| table surface (front-back): | 650 | mm |
| thickness of bolster plate: | 110 | mm |
| Slide | ||
|---|---|---|
| table surface (left-right): | 675 | mm |
| table surface (front-back): | 550 | mm |
| slide (mechan. Press) | ||
|---|---|---|
| slide adjustment: | 63 | mm |
| stroke min.: | 12 | mm |
| stroke max.: | 80 | mm |
| stroke rate (min.): | 75 | /min |
| stroke rate (max.): | 300 | /min |
| Tool Assembly Dimensions | ||
|---|---|---|
| shut height (stroke down, adjustment up), BDC: | 295 | mm |
| Decoiler | ||
|---|---|---|
| design: single reel | ||
| Sirina traku maks.: | 250 | mm |
| coil weight max.: | 0.5 | to |
| max. diameter of coil: | 1200 | mm |
| mandrel expansion range from: | 350 | mm |
| mandrel expansion range up to: | 525 | mm |
| Leveller Unit | ||
|---|---|---|
| Sirina traku maks.: | 150 | mm |
| sheet thickness max.: | 2 | mm |
| number of leveller rolls: | 9 | |
| feed velocity max.: | 18 | m/min |
| Strip-Feeder | ||
|---|---|---|
| feeder type: roll feeder | ||
| Can be inspect in function |
